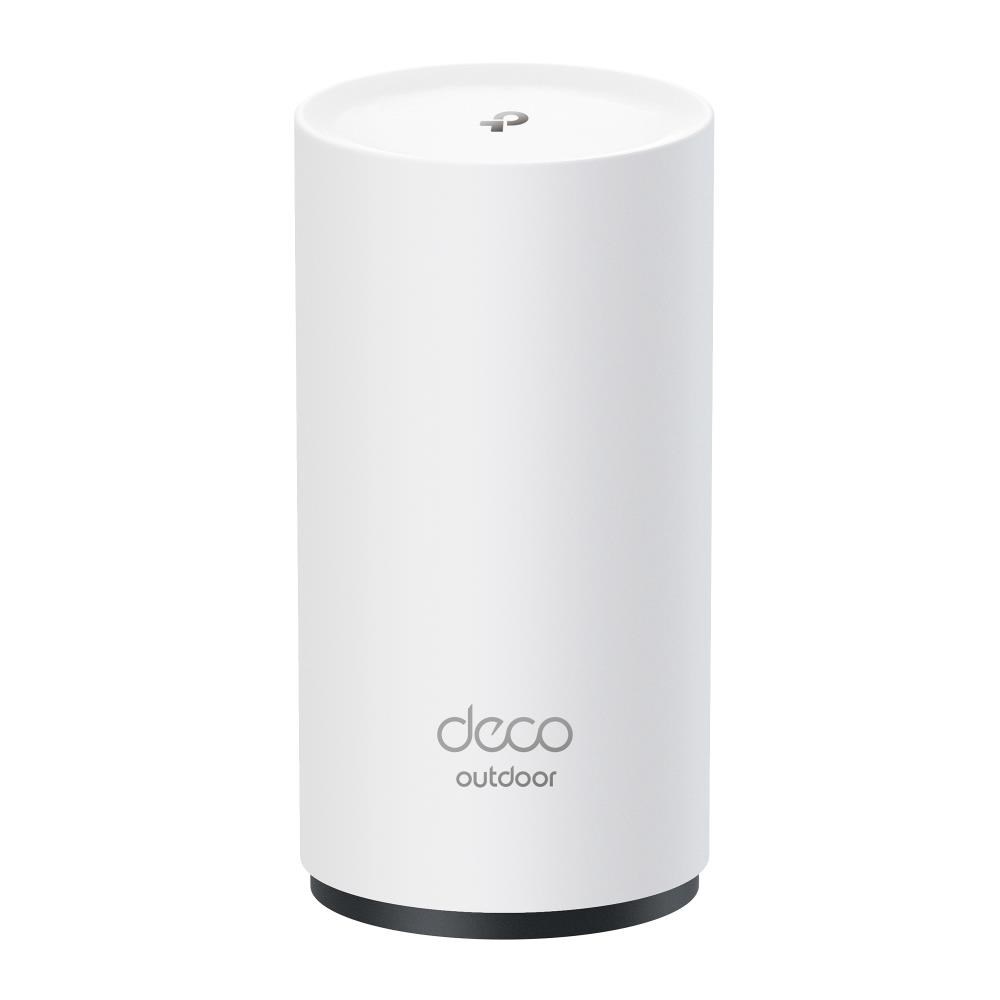

Deco BE25-Outdoor je vhodný pro různé venkovní použití, včetně bazénů, kaváren a dvorů. Může poskytovat pohodlné a vysokorychlostní připojení Wi-Fi pro venkovní zařízení, jako jsou venkovní kamery, venkovní prohlížení a venkovní klienti.
| WIRELESS |
| Standards and Protocols | Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz |
| WiFi Speeds | BE3600
5 GHz: 2882 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be) |
| WiFi Range | Broader Whole Home Coverage
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
4× High-Performance Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | Very High
Dual-Band
Distribute devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple WiFi 7 clients
4 Streams
More than enough bandwidth for connected devices |
| Working Modes | Router Mode
Access Point Mode |
| Advanced Features | • Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant |
| SECURITY |
| Network Security | SPI Firewall
Access Control
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Effective Time
Bandwidth Control |
| VPN Server | • OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server |
| VPN Client | • OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client |
| WiFi Encryption | WPA-Personal
WPA2-Personal
WPA3-Personal |
| HARDWARE |
| Ethernet Ports | • 2× 2.5 Gbps
(PoE and WAN/LAN auto-sensing) |
| Buttons | 1× Reset Button
1× WPS |
| Power | Power Input
IEEE 802.3at PoE or 100-240V~50/60Hz 0.5A AC |
| SOFTWARE |
| Advanced Features | • Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference |
| Protocols | IPv4
IPv6 |
| Service Kits | HomeShield
Learn More> |
| Parental Controls | HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding | Port Forwarding
UPnP |
| IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP | Address Reservation
DHCP Client List
Server |
| DDNS | TP-Link |
| Management Features | Deco App |
| OTHER |
| Network Services Enabled by Default | Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP |
| PHYSICAL |
| Dimensions (W×D×H) | 4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm) |
| Package Content | Deco BE25-Outdoor Unit
1 Deco BE25-Outdoor unit
1 RJ45 Ethernet cable
1 Power adapter
1 Installation Guide
1 Wall/Pole Mounting Kit (Pole Mounting Strap, Plastic Wall Anchors, Self-tapping Screws ) |
| OTHERS |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: -30°C~60°C (-22 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH |
