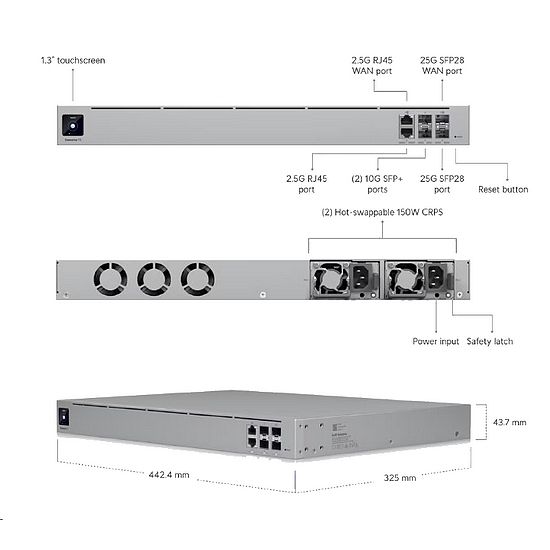

| Rozměry | 442.4 x 43.7 x 325 mm
(17.4 x 1.7 x 12.8") |
| UniFi Application Suite: Network | Ano |
| Spravovaná UniFi zařízení | 500+ |
| Současně připojení uživatelé | 5,000+ |
| Max. počet WAN portů | 5 |
| Výchozí WAN porty | (1) 25G SFP28
(1) 2.5 GbE RJ45 |
| Rozvržení portů | 2.5 GbE RJ45: 2 (2.5G/1G/100M/10M)
10G SFP+: 2 (10G/1G)
25G SFP28: 2 (25G/10G/1G) |
| Propustnost IDS/IPS | 12.5 Gbps |
| Kapacita: SSL/TLS inspekce (souběžné relace) | 10,000 |
| Kapacita: Souběžné relace | 1 milion |
| Kapacita: Nové relace / sekundu | 71,000 |
| Form Factor | Rack mount (1U) |
| Redundance | Shadow Mode (VRRP) Gateway Failover
(2) Hot-Swappable PSUs |
|
| Stateful Firewall | Ano |
| Application-Aware Layer 7 Firewall | Ano |
| SSL Inspection & URL Filtering | Ano |
| DPI & Traffic Identification | Ano |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Ano |
| Content Filtering | Ano |
| Intrusion Prevention (IPS/IDS) | Ano |
| Ad Blocking | Ano |
| IDS/IPS signatury | 95,000+ s CyberSecure Enterprise |
| VLAN/Subnet-based Traffic Segmentation | Ano |
|
| License-Free SD-WAN | Ano |
| Site-to-Site VPN: Site Magic | Ano |
| Site-to-Site VPN: IPsec | Ano |
| Site-to-Site VPN: OpenVPN | Ano |
| VPN Server: Identity Endpoint One-Click VPN | Ano |
| VPN Server: Teleport Zero-Configuration VPN | Ano |
| VPN Server: WireGuard | Ano |
| VPN Server: OpenVPN | Ano |
| VPN Server: L2TP | Ano |
| VPN Client: OpenVPN | Ano |
| VPN Client: WireGuard | Ano |
| VPN Server Single User Throughput (Identity/Teleport/WireGuard) | 1.2 Gbps |
| VPN Server Single User Throughput (OpenVPN) | 210 Mbps |
| VPN Server Single User Throughput (L2TP) | 280 Mbps |
| Site-to-Site VPN Single Tunnel Throughput (Site Magic) | 1.1 Gbps |
| Site-to-Site VPN Single Tunnel Throughput (OpenVPN) | 120 Mbps |
| Site-to-Site VPN Single Tunnel Throughput (IPsec) | 580 Mbps |
| VPN Client Single Tunnel Throughput (WireGuard) | 980 Mbps |
| VPN Client Single Tunnel Throughput (OpenVPN) | 180 Mbps |
|
| Multi-WAN Load Balancing | Ano |
| Shadow Mode (VRRP) High Availability | Ano |
| LACP Port Aggregation | Ano |
| Dynamic Routing (OSPF, BGP) | Ano |
| Advanced QoS | Ano |
| Multicast DNS (mDNS) | Ano |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Ano |
| Integrated RADIUS Server | Ano |
| RADIUS over TLS (RadSec) | Ano |
| Additional Internet Failover with UniFi LTE Backup | Ano |
| Internet Quality and Outage Reporting | Ano |
| Policy-based WAN and VPN Routing | Ano |
| Customizable DHCP Server | Ano |
| IPv6 ISP Support | Ano |
| IGMP Proxy | Ano |
| All Traffic Flows | Ano |
|
| Maximální spotřeba | 82W |
| Způsob napájení | Universal AC vstup, 100—240V AC, 7A Max., 50/60 Hz |

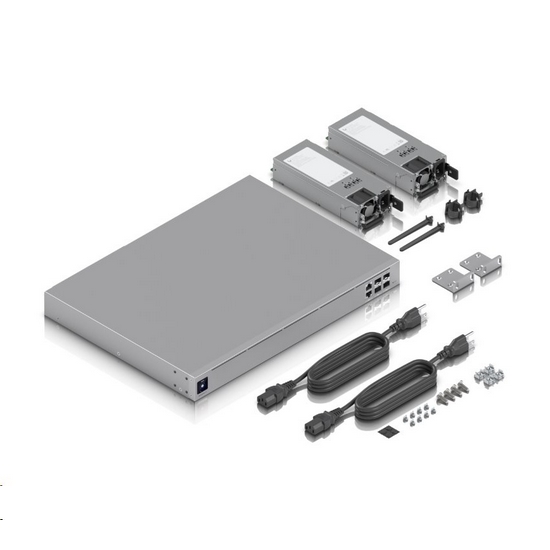

| Napájecí zdroj | (2) Hot-swappable 150W CRPS |
| Podporovaný rozsah napětí | 100—240V AC |
| Ztrátové teplo | 280 BTU/hr |
| Procesor | 18-core ARM® v8.2 at 2 GHz |
| Hmotnost | 6.5 kg (14.3 lb) |
| Materiál šasi | Aluminium CNC, SGCC ocel |
| LCM displej | 1.3" dotyková obrazovka |
| Management | Ethernet
Bluetooth |
| LED kontrolky | Ethernet: Ano
SFP+: Ano |
| Tlačítko | (1) Factory-reset |
| ESD/EMP ochrana | Vzduch: ± 8kV, kontakt: ± 4kV |
| Provozní teplota okolí | 0 to 40° C (32 to 104° F) |
| Provozní vlhkost okolí | 5 to 95% nekondenzující |
| NDAA Compliant | Ano |
| Certifikace | CE, FCC, IC, Anatel: 06375-24-08356 |
|
| Mobilní aplikace | UniFi iOS™: Verze 10.16.2 a novější
UniFi Android™: Verze 10.17.2 a novější |
