Obrázek MSI MB Sc LGA1851 PRO B860M- P WIFI6E, Intel B860, 4xDDR5, WiFi, 2xDP, 1xHDMI, 1xVGA, mATX

MSI MB Sc LGA1851 PRO B860M- P WIFI6E, Intel B860, 4xDDR5, WiFi, 2xDP, 1xHDMI, 1xVGA, mATX

Formát základní desky:micro ATX; Chipset:Intel B860; Socket (patice):Socket 1851; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:2; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:2; VGA:1; DVI:0; DisplayPort Type-C:0
Výrobce: MSI
Dostupnost: 50 ks skladem
Kód: 2648826
Typové označení výrobce : PRO B860M-P WIFI6E
GTIN (EAN): 4711377432696
dodací lhůta : 1-2 dny
2 758,08 Kč bez DPH

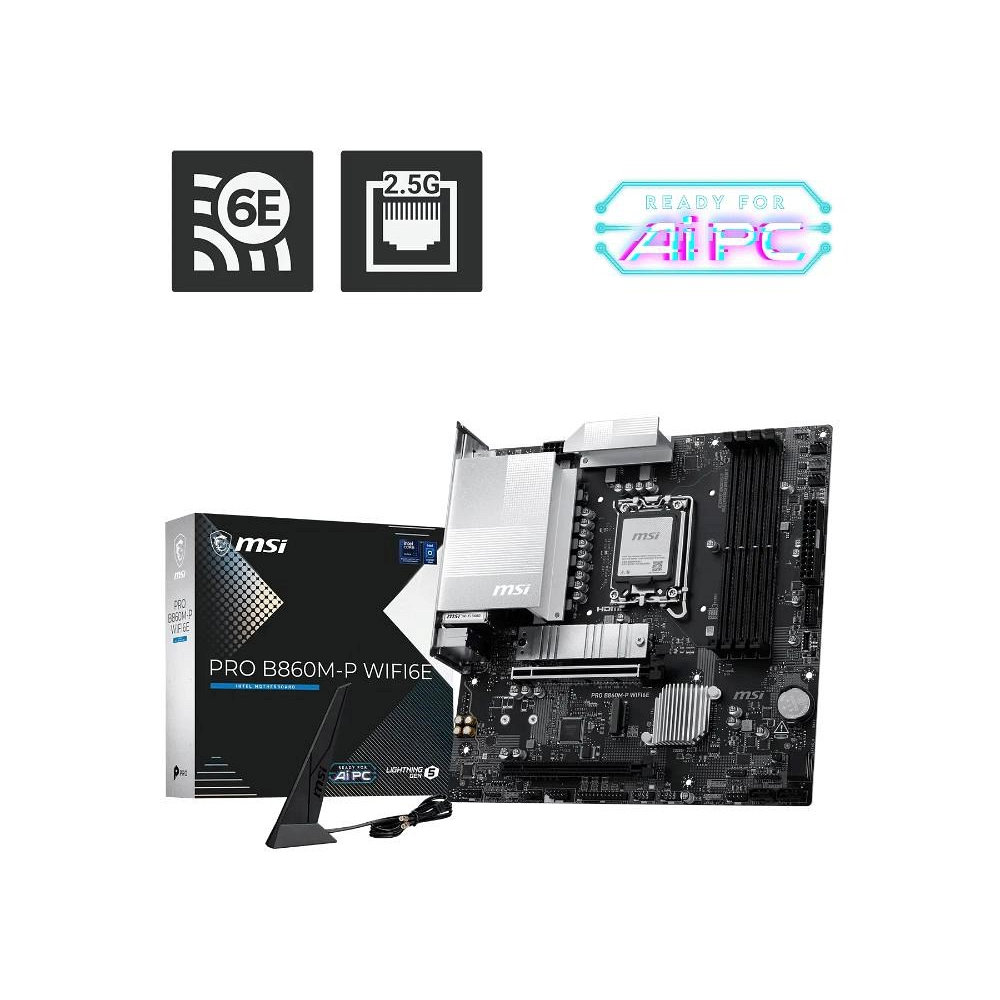

MSI PRO B860M-P WIFI6E

PRO B860M-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 5.0 M.2, ready for the Intel Core™ Ultra processors.


Chipset

INTEL B860


CPU

Supports Intel Core™ Ultra Processors (Series 2)
LGA 1851


Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.


Graphics

1x HDMI™
Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.


Expansion Slots

2x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)


Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio


Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.


RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices


USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)


LAN

Realtek 8125 2.5Gbps LAN


Internal I/O Connectors

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports


Wireless Communication module

Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3**, FIPS, FISMA
* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.


LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED


Operating System

Support for Windows 11 64-bit


Form Factor

mATX
243.84mmx243.84mm
