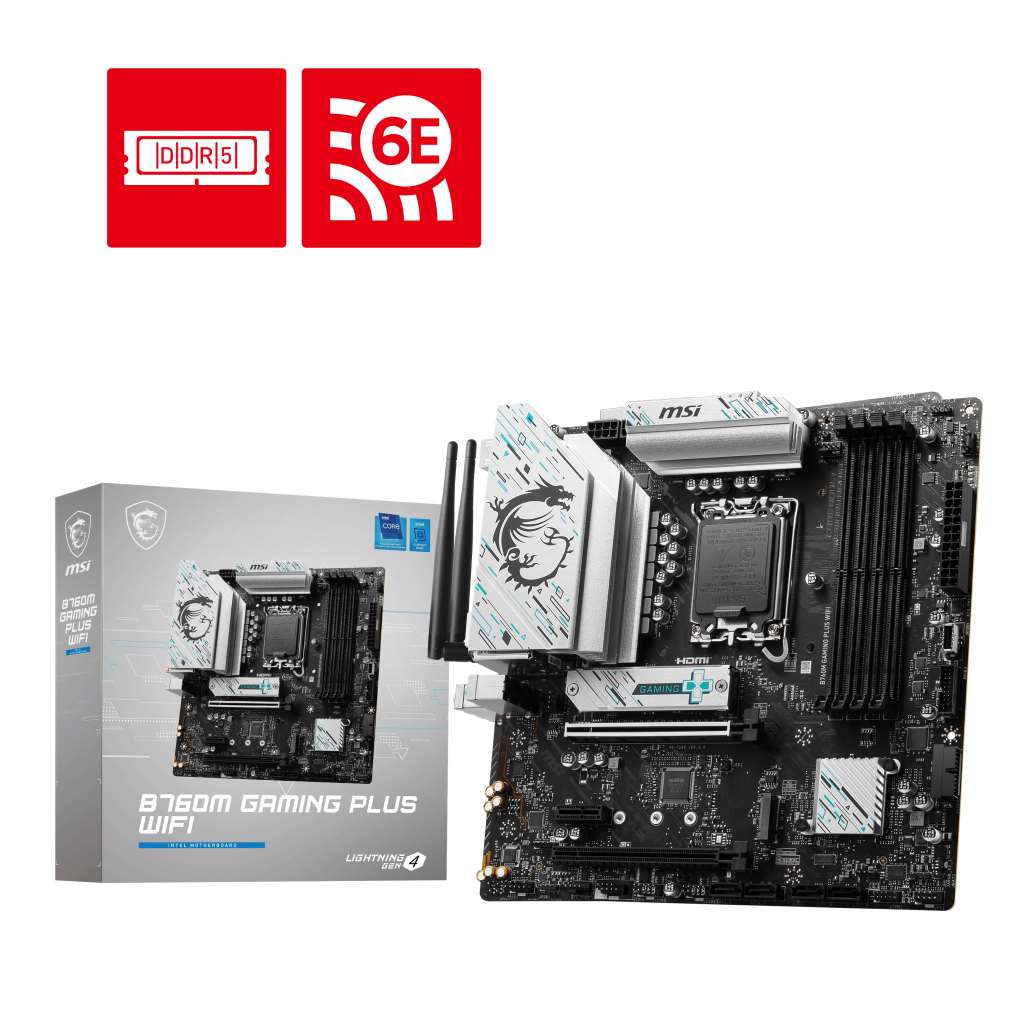

Obrázek MSI MB Sc LGA1700 B760M GAMING PLUS WIFI, Intel B760, 4xDDR5, 2xDP, 2x HDMI, mATX

MSI MB Sc LGA1700 B760M GAMING PLUS WIFI, Intel B760, 4xDDR5, 2xDP, 2x HDMI, mATX

Formát základní desky:micro ATX; Chipset:Intel B760; Socket (patice):Socket 1700; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:2; PCI Express x1:1; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:2; HDMI:2; VGA:0; DVI:0
Výrobce: MSI
Dostupnost: 50 ks skladem
Kód: 2648544
Typové označení výrobce : B760M GAMING PLUS WIFI
GTIN (EAN): 4711377154017
dodací lhůta : 1-2 dny
2 695,68 Kč bez DPH

MSI B760M GAMING PLUS WIFI

B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.

  • Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use.Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience


CHIPSET

INTEL B760



CPU

Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700



MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory



ONBOARD GRAPHICS

2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



EXPANSION SLOT

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)



STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)



LAN + WIRELESS LAN

Realtek RTL8125BG 2.5G LAN

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.



AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio



INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports



BACK PANEL I/O

1x Keyboard / Mouse
2x DisplayPort
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x 2.5G LAN
2x Wi-Fi / Bluetooth
2x USB 2.0
2x HDMI™
2x USB 3.2 Gen 2 10Gbps (Type-A)
3x Audio Connectors



OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit



FORM FACTOR

mATX
243.84 x 243.84mm
