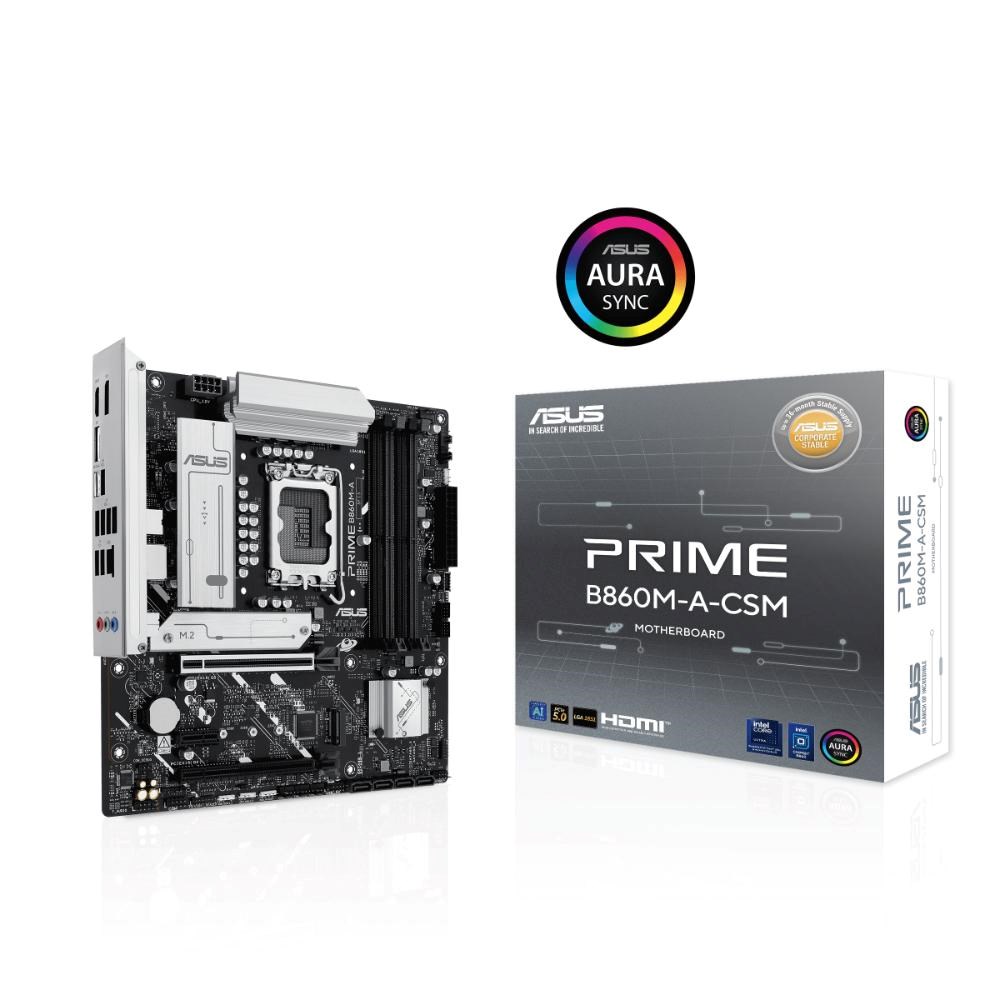

ASUS MB Sc LGA1851 PRIME B860M-A-CSM, Intel B860, 4xDDR5, 2xDP, 1xHDMI, mATX

CPU

Support Intel Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B860 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

2 x DisplayPort**
1 x HDMI™ port***
 * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel Core™ Ultra Processors(series 2)*
1 x PCIe 5.0 x16 slot
Intel B860 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
IntelB860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
*USB Type-C power delivery output: max. 5V/3A
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4) header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
