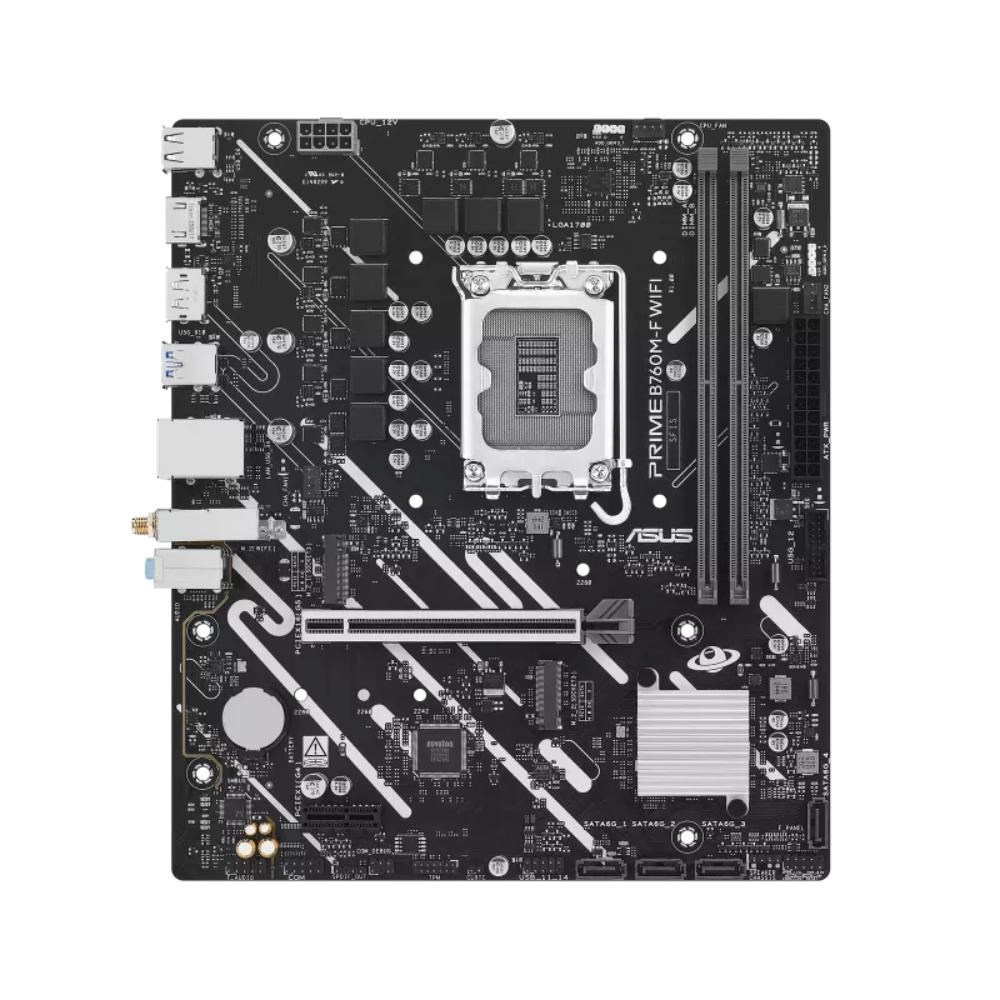

The ASUS PRIME B760M-F WiFi motherboard is designed for users who seek reliable performance, modern connectivity, and future-ready features. It supports 12th, 13th, and 14th Gen Intel processors thanks to the LGA 1700 socket and the Intel B760 chipset.
CPU
Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B760 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration.
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types.
** Max. 4K@60Hz (DisplayPort 1.4)
*** 4K@30Hz (HDMI 1.4)
Expansion Slots
Intel Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2_1: type 2280, PCIe 4.0 x4
M.2_2: type 2242/2260/2280, PCIe 4.0 x4
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6 (1x1)
Supports 2.4/5GHz band
Bluetooth v5.3*
USB
Rear:
4 x USB 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
Front:
1 x USB 5Gbps header (2 ports)
1 x USB 2.0 header (2 ports)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Jack detection, Multi-streaming, Front panel jack-retasking
Up to 24-bit/192 kHz playback
Back Panel I/O Ports
4 x USB 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
1 x HDMI™
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet
3 x audio jacks
Internal I/O
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
1 x 24-pin Main Power
1 x 8-pin +12V CPU Power
2 x M.2 slots
4 x SATA 6Gb/s ports
1 x USB 5Gbps header
1 x USB 2.0 header
2 x ARGB Gen 2 headers
1 x Clear CMOS header
1 x COM port header
1 x Front Panel Audio
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header
1 x Front Panel System header
Special Features
ASUS 5X PROTECTION III
ASUS Q-Design
ASUS EZ DIY
ASUS Thermal Solution
Aura Sync (ARGB Gen 2)
Software Features
Armoury Crate (Aura Sync, Fan Xpert 2+, AI Noise Cancelation)
AI Suite 3
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 days)
WinRAR (40 days)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
2 x SATA cables
1 x ASUS Wi-Fi antenna
1 x I/O Shield
2 x M.2 anchors
1 x Quick start guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
micro-ATX
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
