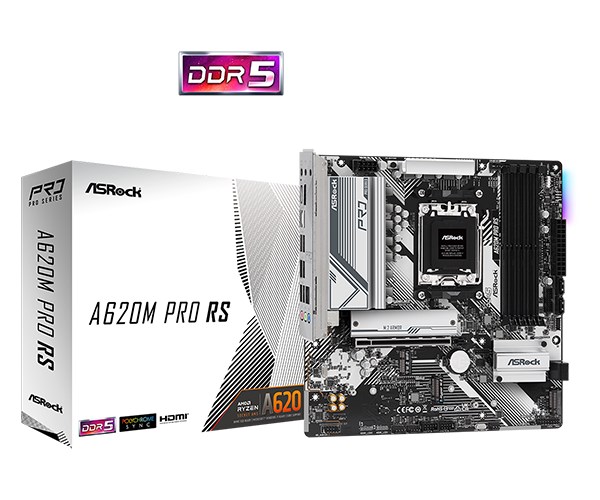

Obrázek ASRock MB Sc AM5 A620M Pro RS, AMD A620, 4xDDR5, HDMI, DP

ASRock MB Sc AM5 A620M Pro RS, AMD A620, 4xDDR5, HDMI, DP

Formát základní desky:micro ATX; Chipset:AMD A620; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x1:0; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; USB 2:8; USB 3:5; USB C:2; 3.5mm Jack
Výrobce: ASRock
Dostupnost: na objednávku - obvykle (14 dnů).
Kód: 380846
Typové označení výrobce : A620M PRO RS
GTIN (EAN): 4710483943072
dodací lhůta : 1-2 dny
1 897,93 Kč bez DPH

ASRock A620M Pro RS

  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS
  • 4 x DDR5 DIMMs
  • Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 4.0 x16, M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec,
  • Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
  • 1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer,
  • BIOS Flashback


Unique Feature

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+2+1 Power Phase, 50A Dr.MOS
- Pre-Installed I/O Shield
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver
Installer EZ Troubleshooter
- ASRock Post Status Checker


CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*


*Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/)


The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.


Chipset

- AMD A620


Memory

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


*Please refer to Memory Support List for more information.


BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support


Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz


Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio


LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H


Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)


*Supports NVMe SSD as boot disks


Storage

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors


*Supports NVMe SSD as boot disks


RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


*Requires additional M.2 NVMe expansion cards to support RAID 10


USB

- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)


*All USB ports support ESD Protection


Connector

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header


*Supports in total up to 12V/3A, 36W LED Strip


**Support in total up to 5V/3A, 15W LED Strip


***CPU_FAN1 supports the fan power up to 1A (12W).


****CPU_FAN2/WP supports the fan power up to 2A (24W).


*****CHA_FAN1~3/WP support the fan power up to 2A (24W).


CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.


Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone


Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash


*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories

- 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket


Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm


OS

- Microsoft Windows 10 64-bit / 11 64-bit


Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
