| CAMERA |
|
| Image Sensor |
1/2.7” Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Day/Night/Auto/Schedule-Switch |
| LENS |
|
| Type |
Fixed Focal Lens |
| Focal Length |
4 mm |
| Aperture |
4 mm: F1.6 |
| FOV |
2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107° |
| Lens Mount |
M12*P 0.5 |
| DORI Distance |
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft) |
| VIDEO |
|
| Max. Resolution |
2880 X 1620 |
| Main Stream |
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream |
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
| H.264 Type |
Main Profile/High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile |
| H.265+ |
Main Stream Supported |
| Video Bit Rate |
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
| ILLUMINATOR |
|
| IR LED |
Quantity: 1
Range: 30m
Wavelength: 850nm |
| White LED |
Quantity: 1
Range: 30m |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| ANGLE ADJUSTMENT (MANUAL) |
|
| Range |
Pan: 0° to 360°, Tilt: 0° to 85° |
| IMAGE |
|
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range |
120 dB |
| SNR |
? 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD Setting |
Yes |
| AUDIO |
|
| Audio Communication |
N/A |
| Audio Input |
Yes |
| Audio Output |
N/A |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64 Kbps(G.711 alaw) |
| NETWORK |
|
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Network Storage |
NAS (NFS, SMB/ CIFS) |
| API |
Open Network Video Interface (Profile S) |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser |
Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above |
| Cloud |
Yes |
| ONVIF |
Yes |
| INTERFACES |
|
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
| Built-in Microphone |
Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker |
N/A |
| Audio |
N/A |
| ALARM AND EVENT MANAGEMENT |
|
| Smart Event |
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event |
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection |
| Alarm Linkage |
Memory Card Video Recording, Message Push, White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| DEEP LEARNING FUNCTION |
|
| Multi-Target-Type Detection |
Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| Face Capture |
N/A |
| Face Comparison |
N/A |
| GENERAL |
|
| Package Contents |

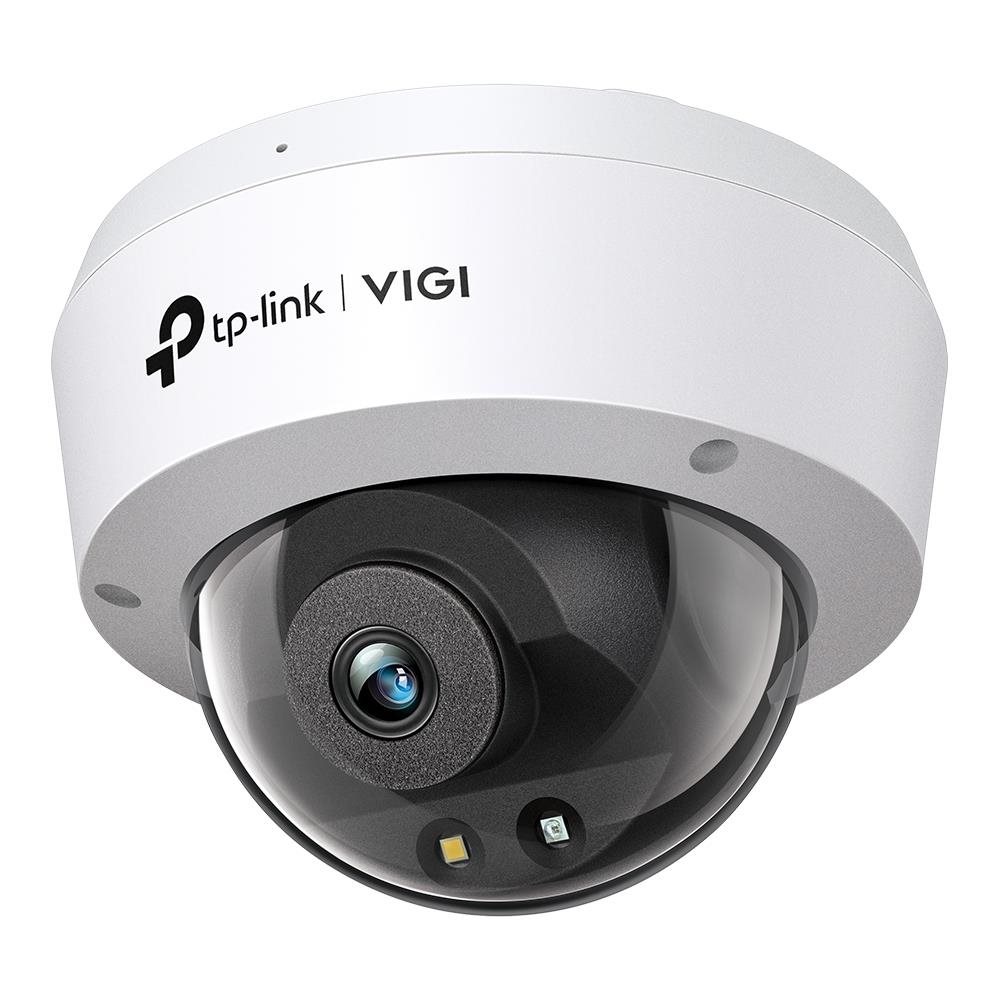

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
| Operating Temperature |
-30–60 °C |
| Storage Temperature |
-40–60 °C |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Material |
Plastic |
| Net Weight |
0.28 Kg |
| Gross Weight |
0.47 Kg |
| Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 0) |
| Power Consumption |
Maximum: 7 W
Typical (Day Mode): 1.5 W
Typical (Night Mode with IR LED): 2.5 W
Typical (Night Mode with White LED): 2.8 W |
| Protection |
IP67, IK10 |
| Product Dimensions (L x W x H) |
?115x85.7 mm |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC |
