| CAMERA |
| Image Sensor | 1/2.8“ Progressive Scan CMOS Sensor |
| Lens | Lens_Wide Angle
Focal Length: 2.53 mm
Aperture: F1.6
Field of View: 165.1° (Diagonal), 137.6°(Horizontal), 73°(Vertical)
|
Lens_Telephone
Focal Length: 6mm
Aperture: F1.6
Field of View: 65.5° (Diagonal), 56.5°(Horizontal), 30.6°(Vertical)
| Night Vision | 850 nm IR LED (33 ft / 10 m)
Color Night Vision |
| Lighting | 6× Built-in Spotlights
Motion Activated, App-Controlled
2× Alarm Lights
1× Indicator LED |
| Interface & Button | 1× POWER Button
1× RESET Button
1× MicroSD Card Slot (Up to 512 GB) |
| Pan/Tilt Range | Pan Mechanical Range: 334° (360° Pan Coverage)
Tilt Mechanical Range: 90° (120° Tilt Coverage) |
| SOLAR PANEL |
| Output | Solar Panel Max Charging Voltage: 5.2 V
Solar Panel Max Charging Power: 2.5 W |
| Output Port | Type-C |
| VIDEO & AUDIO |
| Maximum Resolution | Fixed Lens: 2K 3MP (2304 × 1296 px)
Pan/Tilt Lens: 2K 3MP (2304 × 1296 px) |
| Frame Rate | 15fps |
| Digital Zoom | 10.8× |
| Live View | Yes |
| Image Enhancement | 3D DNR
BLC
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 91.5 dB (Level measured at 10 cm distance)
64.4 dB (Level measured at 300 cm distance) |
| STORAGE |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS |
| Sensor | Three Motion Sensors
Ambient Light Sensor |
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection |
| Activity Zones | Yes |
| Output Notification | App Notifications of Camera Event
App Notification of AI Detection Event with Snapshot (Subscription Required) |
| NETWORK |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
IEEE 802.11a/n, 5GHz Wi-Fi |
| Ethernet Port | No |
| RTSP | No |
| ONVIF | No |
| SECURITY |
| Security | 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK/WPA3-PSK |
| POWER |
| Power Source | 10000 mAh Built-in Rechargeable Lithium-ion Battery
Solar Panel: Tapo A201 |
| Input Voltage | Camera Input Voltage: 5V (DC) |
| GENERAL |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP65 |
| System Requirements | Tapo App: iOS 12.0 or higher, Android 7.0 or higher |
| Mounting Options | Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -20? to 45? (-4°F to 113°F) |
| Storage Temperature | –40°C to 60°C (–40°F to 140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions ( W x D x H ) | Camera Dimensions: 5.19 × 3.22 × 6.31 in (132 × 82 × 160 mm)
Solar Panel Dimensions: 6.82 × 4.74 × 0.61 in (173 × 120 × 15.5 mm) |

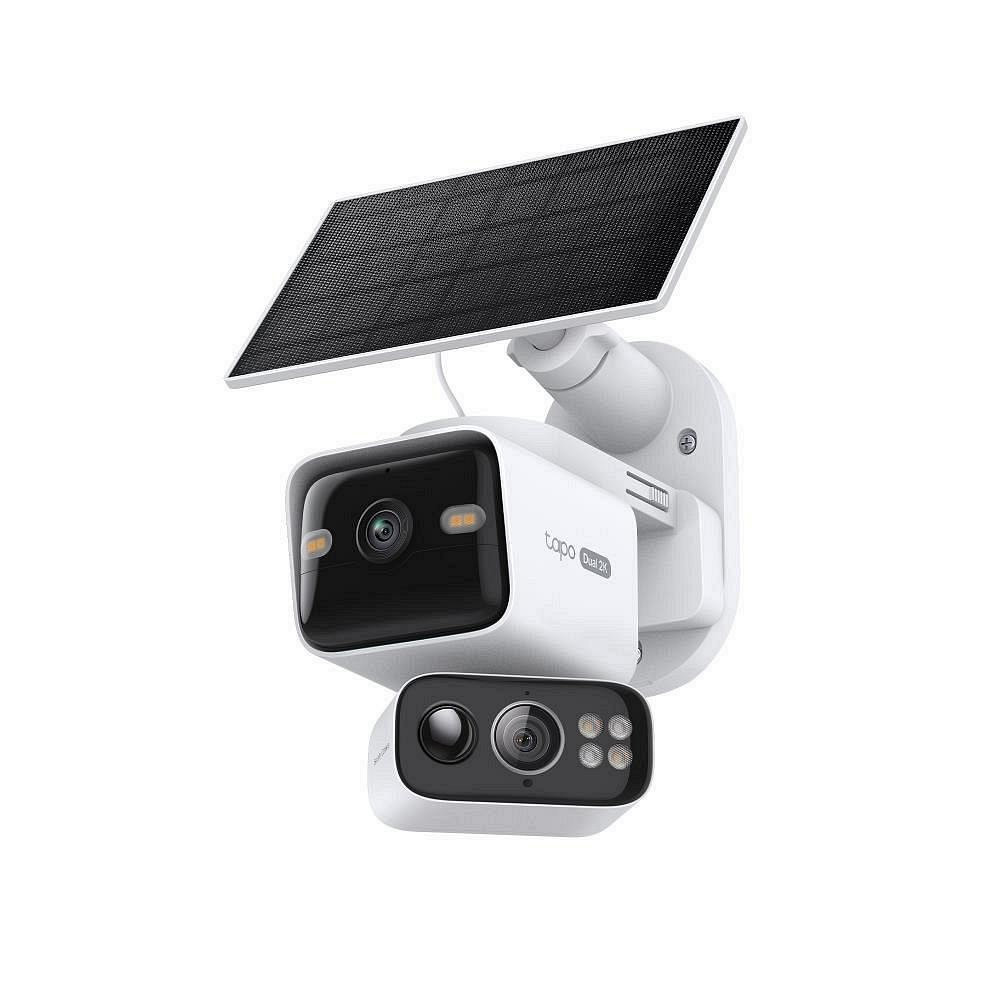

| Package Content | Tapo C645D Camera ×1
Tapo A201 Solar Panel ×1
Solar Panel Bracket ×1
Base Cover ×1
USB Adapter Cable ×1
Extension Wire ×1
Cable Zip Tie ×1
Mounting Screws and Anchors
Mounting Template Stickers
Quick Start Guide |
| Certifications | FCC, WWA, NCC, BSMI, DOE, CEC, IP65, RoHS |
