| CAMERA |
| Image Sensor | 1/2.8“ Progressive Scan CMOS Sensor |
| Lens | Focal Length: 6 mm ± 5%, 2.53 mm±5%
Aperture: F1.6 ± 10%, F1.6 ± 10%
Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical);
165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical) |
| Night Vision | 850 nm IR LED (99 ft / 29.9 m), Color Night Vision |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Interface & Button | 1× RJ45 (10M/100M) Ethernet Port
1× RESET Button
1× microSD Card Slot (Up to 512 GB) |
| VIDEO & AUDIO |
| Maximum Resolution | 2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px) |
| Frame Rate | 15 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS |
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Camera Tampering |
| Activity Zones | Yes
*Only works with Motion/Person/Pet/Vehicle Detection. |
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
| NETWORK |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11 b/g/n/ax, 2.4 GHz |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Ethernet Port | Yes |
| RTSP | Yes |
| ONVIF | Yes |
| Transmission Rate | 11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps
11ax: 143.4 Mbps |
| SECURITY |
| Security | On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK/WPA3 |
| POWER |
| Power Source | 12 V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power) |
| DC Power Connector Size | Inside O: 2.1 mm
Outside O: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 5.3 W |
| Maximum Power Consumption | 11.2 W |
| GENERAL |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance | IP66 |
| Mounting Options | Wall-Mounted
Eave-Mounted
Pole-Mounted |
| Operating Temperature | -30 oC ~ 60 oC (-22 °F ~ 140 °F ) |
| Storage Temperature | -40 oC ~ 60 oC (-40 °F ~ 140 °F) |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Dimensions ( W x D x H ) | 4.51 × 6.28 × 5.99 in (114.57 × 159.55 × 152.1 mm) |
| Weight | 17.32 oz / 491 g |

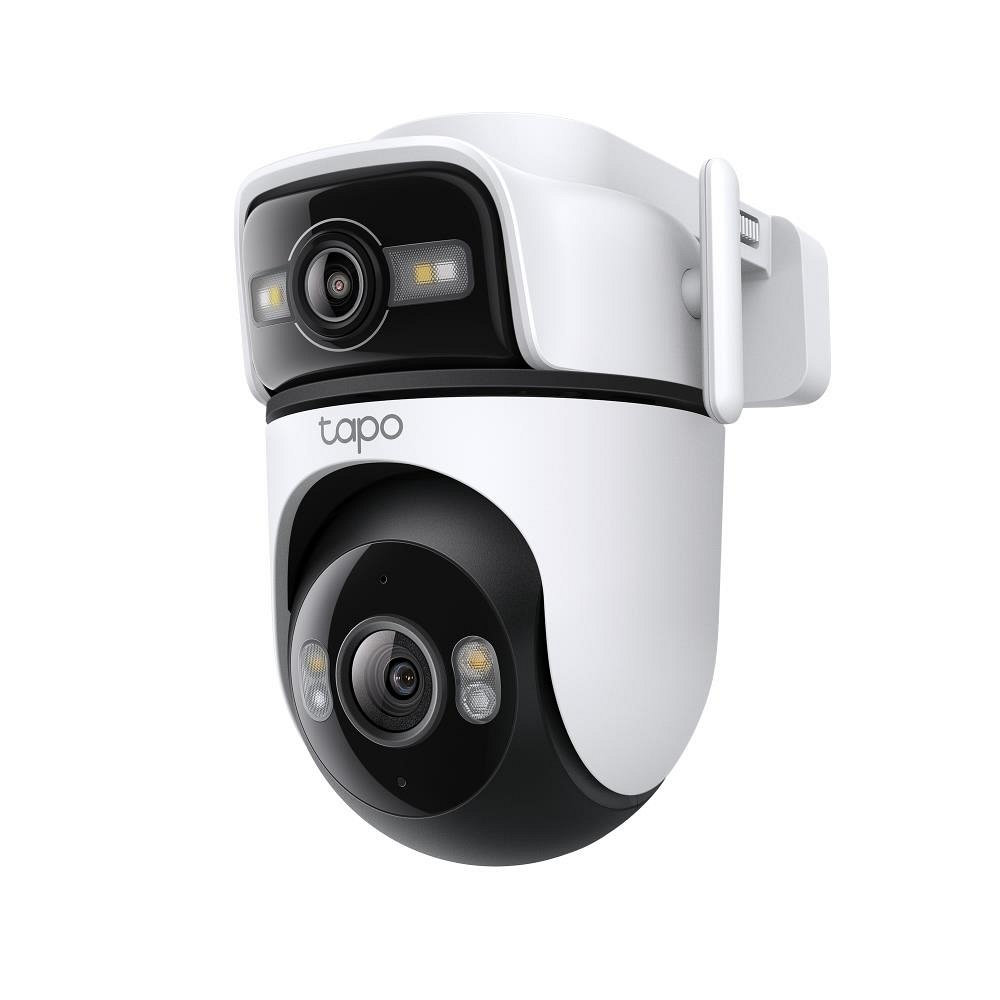

| Package Content | Tapo C545D Camera ×1
Mounting Bracket ×1
Mounting Template Sticker ×1
Mounting Screws ×4
Mounting Anchors ×4
Waterproof Seal ×1
Waterproof Cable Attachments ×1
Power Adapter ×1
Quick Start Guide |
