| CAMERA |
| Image Sensor | 1/2.9” CMOS Sensor |
| Lens | Focal Length: 3.17 mm
Aperture: F1.65
Field of View: 122° (Diagonal), 105°(Horizontal), 59°(Vertical) |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage) |
| Night Vision | 850 nm IR LED (98 ft / 29.9 m), starlight color night vision |
| Interface & Button | 1× DC Port
1× Ethernet Port, PoE
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
1× Nano-SIM Card Slot |
| VIDEO & AUDIO |
| Maximum Resolution | 1920 × 1080 px |
| Frame Rate | 30 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards > |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS |
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Tamper Detection
Line-Crossing Detection
Meow Detection
Bark Detection
Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
| NETWORK |
| Network Connectivity | 3G/4G LTE/LAN Cable |
| RTSP | Yes |
| ONVIF | Yes |
| 4G |
| Frequency | LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41 |
| POWER |
| Power Source | 12V DC Power Adapter
PoE: 802.3 af/at |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | DC Power:12V, 1A |
| GENERAL |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30?~60? |
| Storage Temperature | -40?~60? |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions | Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm)
Camera Dimensions with included antennas and bracket
5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm) |

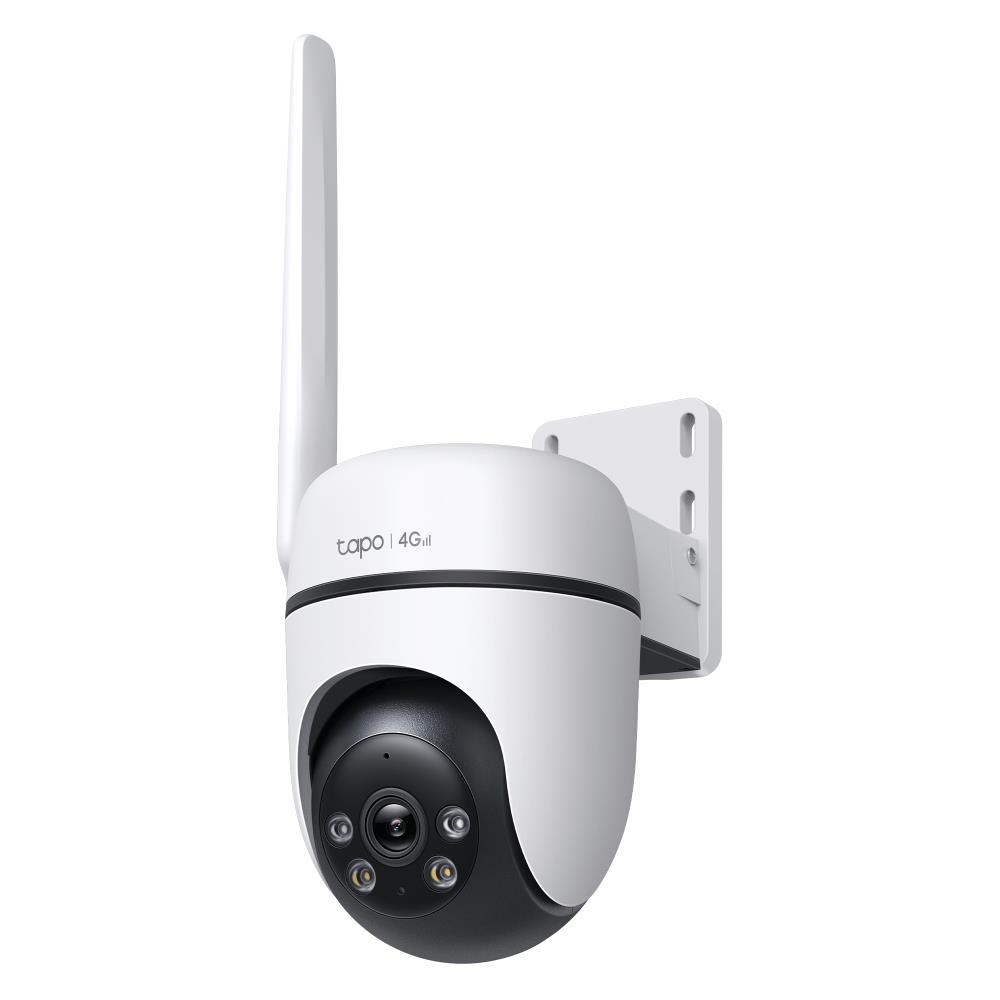

| Package Contents | Tapo C501GW Camera
Detachable Antenna
DC Power Adapter
Mounting Template
Mounting Bracket
Mounting Anchors
Bracket Screws
Mounting Screws
Waterproof Seal
Waterproof Cable Attachments
Quick Start Guide |
| Certifications | CE,NTRA,RCM,VCCI,NCC,BSMI,ROHS |
