| SECURITY |
| Access Control | • Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL |
| Filtering | • WEB Group Filtering§
• URL Filtering
• Web Security§ |
| ARP Inspection | • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
|
| HARDWARE FEATURES |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
| Interface | • 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
|
• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | • Desktop
• Rackmountable |
| Max Power Consumption | 18.5W (With USB 3.0 connected)
|
| PERFORMANCE |
| GRE | • Unencrypted: 1153.0 Mbps
• Encrypted: 559.2 Mbps |
| WireGuard VPN | 771.6 Mbps |
| Concurrent Session | 1,000,000 |
| New Sessions /Second | 7 |
| NAT (Static IP) | 2345.71 Mbps / 2351.22 Mbps |
| NAT(DHCP) | 2353.41 Mbps / 2353.40 Mbps |
| NAT(PPPoE) | 2336.52 Mbps / 2336.08 Mbps |
| NAT (L2TP) | 1937.53 Mbps / 1761.82 Mbps |
| NAT (PPTP) | 1757.54 Mbps / 2011.33 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 1125.60 Mbps
• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps |
| OpenVPN | UDP: 266.2 Mbps |
| L2TP VPN Throughput | • Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps |
| PPTP VPN Throughput | • Unencrypted: 3035 Mbps
• Encrypted: 534.6 Mbps |
| SSL VPN Throughput | 263.1 Mbps |
| 66 Byte Packet forwarding rate | 1833 Mbps / 1835 Mbps |
| 1,518 Byte Packet forwarding rate | 2461 Mbps / 2461 Mbps
|
| BASIC FUNCTIONS |
| WAN Connection Type | • Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
|
| ADVANCED FUNCTIONS |
| Advanced Routing | • Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode) |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection |
| NAT | • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
| Session Limit | IP-based Session Limit
|
| VPN |
| GRE | Only in Standalone Mode |
| SSL VPN | 80 Tunnels |
| IPsec VPN | • 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec |
| OpenVPN | • OpenVPN Server
• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
|
| AUTHENTICATION |
| Web Authentication | • No Authentication
• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP
|
| MANAGEMENT |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*
|
| OTHERS |
| Certification | CE, FCC |

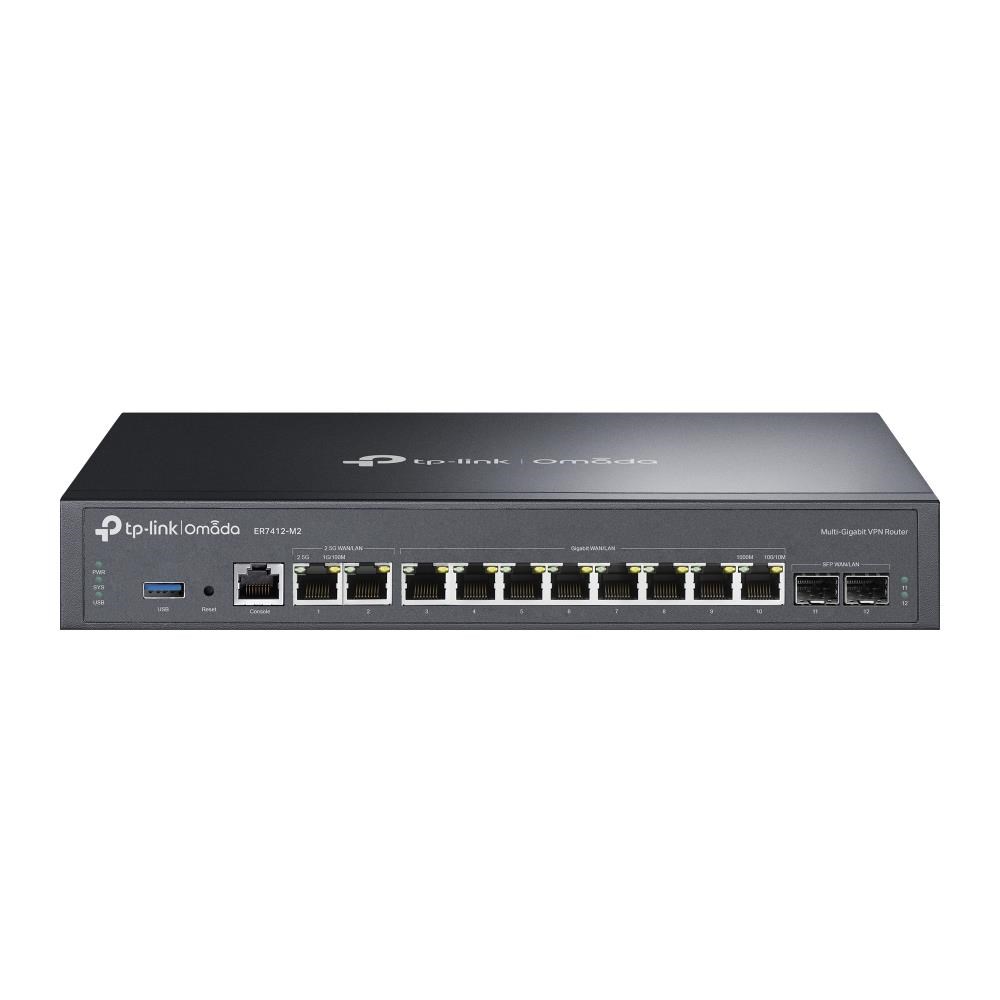

| Package Contents | • ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–45 ? (32–113 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing |
