| HARDWARE FEATURES |
| Interface | • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in
• 1× Grounding Termina |
| Button | 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Power Supply | • 802.3at PoE
• 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up
to 1 Gbps, etc.
• Idle mode: 4.8W(PoE) |
| Dimensions ( W x D x H ) | • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)
• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) |
| Antenna | Wi-Fi
• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas
• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas
*Note: The gains above are the single-antenna peak gains.
IoT
• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional
antennas |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP66 for Wall Mount
IP65 for Pole Mount |
| Mounting | • Pole Mount (Kits included)
• Wall Mount (Kits included)
|
| WIRELESS FEATURES |
| Coverage | • 2.4 GHz: up to 2,150 ft (200 m)
• 5 GHz: up to 3,200 ft (300 m) |
| Wireless Standards | 5 GHz: IEEE 802.11a/n/ac/ax
2.4 GHz: IEEE 802.11b/g/n/ax |
| Frequency | • 5 GHz
• 2.4 GHz |
| Signal Rate | • 2.4 GHz: up to 573 Mbps
• 5 GHz: up to 1201 Mbps
*Note: Country-Specific Restriction Apply |
| Wireless Functions | • Maximum number of BSSIDs: 16 (8 on each band)
• Maximum number of associated STAs: 250+
• Guest Network
• ACS (Automatic Channel Selection)
• Airtime Fairness
• Band Steering
• 802.11 Rate Control
• Rogue AP Detection
• URL Filtering
• WLAN Optimization
• Lock to AP
• SSID/Client Rate Limit
• Load Balance
• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§
• Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)
• QoS (Quality of Service) |
| Wireless Security | • ACL
• MAC Filter
• 802.1X Authentication
• MAC-Based Authentication
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None
• Radius Accounting
• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)
• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 |
| Transmission Power | Maximum transmit power:
CE (ERIP)
• 2.4 GHz: 20 dBm
• 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C,
FCC (Conducted Power)
• 2.4 GHz: 25 dBm
• 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3
Minimum transmit power
CE (ERIP)
• 2.4 GHz: 7 dBm
• 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6
dBm in U-NII-3
FCC (Conducted Power)
• 2.4 GHz: 4 dBm
• 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C,
4dBm in U-NII-3
Adjustable power increment: 1 dBm
*Note: MIMO combined power, excluding antenna gains. The actual
transmit power depends on local laws and regulations
|
| Management Features |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller
• Omada Software Controller
• Omada Central (Cloud-Based)
• Omada App |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes
|
| OTHERS |
| Certification | CE, FCC, RoHS |

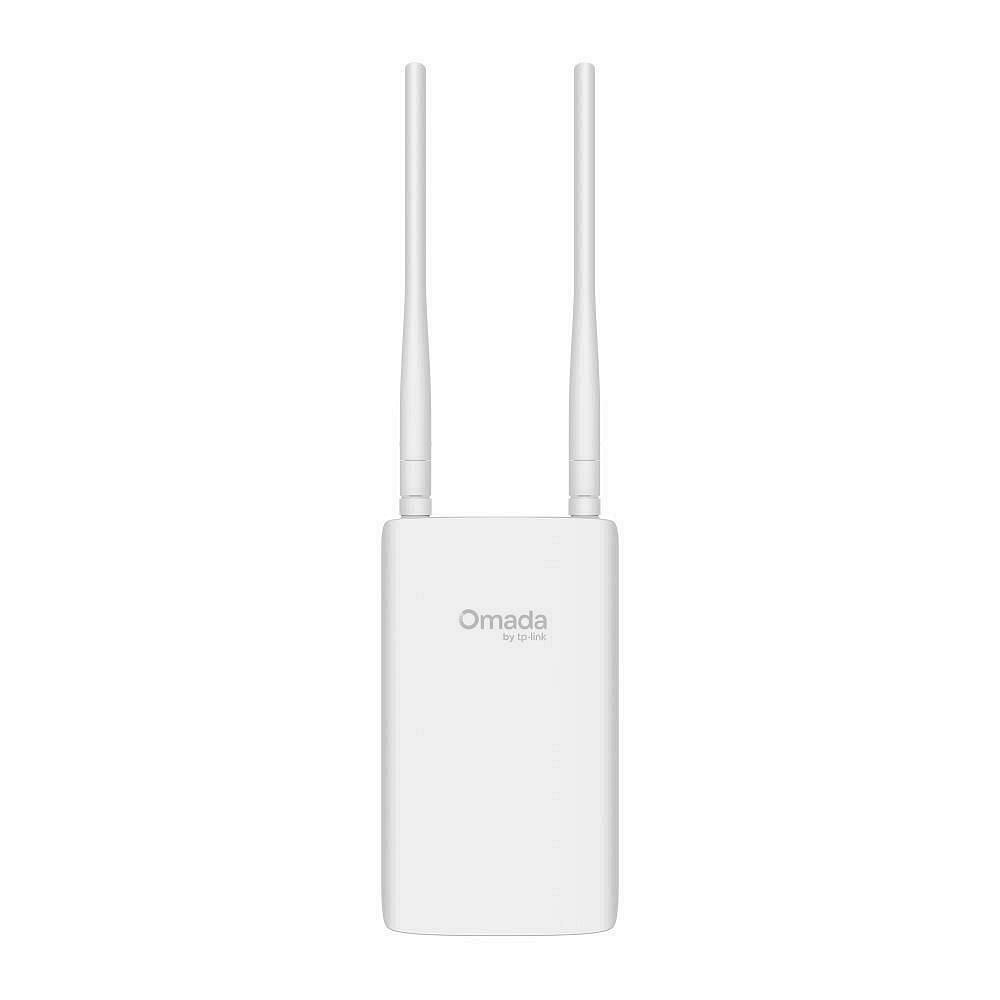

| Package Content | • EAP603-Outdoor
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
• Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing |
