| SECURITY |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering*5
• URL Filtering
• Web Security*5 |
| ARP Inspection | • Sending GARP Packets
• ARP Scanning*5
• IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
|
| HARDWARE FEATURES |
| Interface | • 1× Gigabit WAN/LAN Port
• 4× Gigabit LAN Ports
• 1× DSL Port
• 2× FXS Ports
• 1× USB 3.0 (supports USB LTE dongle and USB Storage)
• Dual Nano SIM Slot (4G+ Cat6) |
| Button | Reset Button |
| Power Supply | 12V DC / 3.3A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not
included) |
| Antenna | • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable
antennas
• LTE: 2× 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately) |
| Max. Power Consumption | Power adapter not included: 28.482 W (Full load + USB)
Power adapter included: 31.42 W (Full load + USB)
|
| PERFORMANCE |
| GRE | • Unencrypted: 541.8Mbp
• Encrypted: 289.2Mbps |
| WireGuard VPN | 311.6Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 3,8 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 569.9Mbps
• ESP-SHA256-AES256: 543.3Mbps
• ESP-SHA384-AES256: 549.0Mbps
• ESP-SHA512-AES256: 539.3Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 909.4 Mbps
• Encrypted: 494.9Mbps |
| PPTP VPN Throughput | • Unencrypted: 897.5 Mbps
• Encrypted: 190.8 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps
|
| WIRELESS FEATURES |
| Advanced Features | • Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• MU-MIMO
• Load Balance
• Automatic Channel Selection Algorithm
• Airtime Fairness
• Rate Limit: Based on SSID/Client
• Transmit Power Control: Adjust transmit Power on dBm
• Multiple SSIDs: 16 in total (8 per radio)
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network | Support
|
| BASIC FUNCTIONS |
| WAN Connection Type | • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
|
| Advanced Features |
| Advanced Routing | • Static Routing
• Policy Routing
• RIP*5
• OSPF*5 |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
| NAT | • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
| Session Limit | IP-Based Session Limit
|
| VPN |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server
• PPTP VPN Client (10)*6
• 50 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server
• L2TP VPN Client (10)*6
• 50 Tunnels
• L2TP over IPSec |
| OpenVPN | • OpenVPN Server
• OpenVPN Client (5)*6
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
| WireGuard VPN | Yes
|
| AUTHENTICATION |
| Web Authentication | • No Authentication
• Simple Password*6
• Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)
• External Radius Sever
• External Portal Sever*6
• LDAP
|
| Management Features |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• TR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes.Require the use of Omada Controller. |
| Management Features | • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
|
| OTHERS |
| Certification | CE, RoHS |

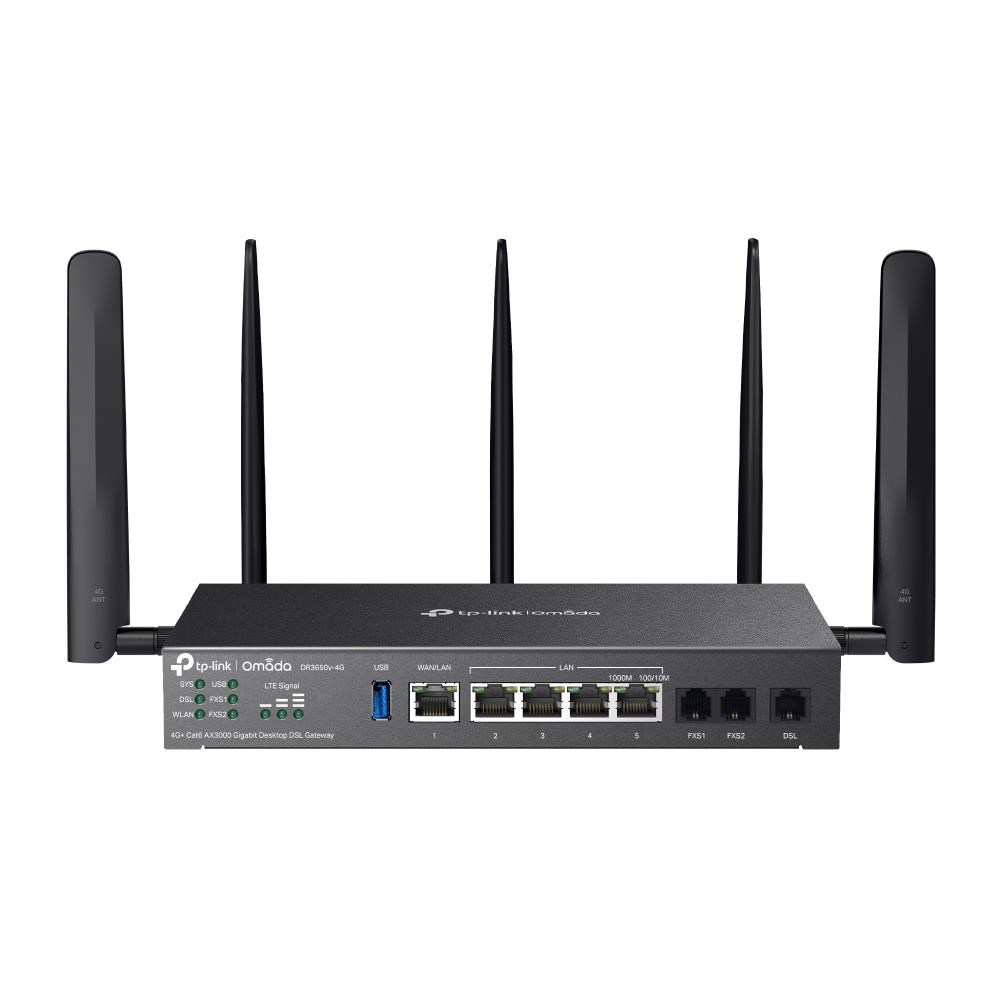

| Package Content | • DR3650v-4G
• Power Adapter
• Ethernet Cable
• Phone Cable
• Rubber Feet,
• SIM Card Eject Pin
• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
