| WIRELESS | |
| Standards | Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Bluetooth 4.2
ZigBee HA 1.2 |
| WiFi Speeds | AC2200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n) |
| WiFi Range | 4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
8× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium
Tri-Band
Distribute devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes | Router Mode
Access Point Mode |
| HARDWARE | |
| Processor | Qualcomm 717 MHz Quad-core CPU |
| Ethernet Ports | 2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| SECURITY | |
| WiFi Encryption | WPA-Personal
WPA2-Personal |
| Network Security | SPI Firewall
Access Control
HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols | IPv4
IPv6 |
| Service Kits | HomeCare™
Smart Hub
|
| Parental Controls | HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports |
| WAN Types | Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service | HomeCare™ QoS
QoS by Device
QoS by Application |
| Cloud Service | OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding | Port Forwarding
UPnP |
| IPTV | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP | Address Reservation
DHCP Client List
Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
| Dimensions (W×D×H) | 5.7 × 5.7 × 1.8 in
(144 × 144 × 46 mm) |

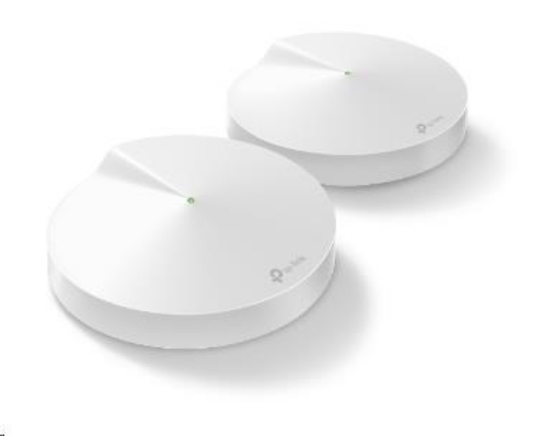

| Package Contents | Deco M9 Plus (3-pack)
3 Deco M9 Plus Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide
Deco M9 Plus (2-pack)
2 Deco M9 Plus Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide
Deco M9 Plus (1-pack)
1 Deco M9 Plus Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide |
| OTHERS | |
| System Requirements | Android 4.4 or later
iOS 9.0 or later |
| Certifications | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment | Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm |
