| HARDWARE FEATURES |
|
| Interface |
1× Gigabit WAN/LAN,
3× Gigabit LAN,
1× USB 2.0,
2× RJ11 (1× DSL + 1× FXS) |
| External Power Supply |
12V / 1.5A |
| IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards |
ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP) |
| ADSL Standards |
Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5(Annex A/L/M) |
| Dimensions ( W x D x H ) |
260.2 × 135.0 × 41.6 mm |
| Antenna |
4× External Antennas |
| WIRELESS FEATURES |
|
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| Wireless Speeds |
1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Transmit Power |
CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WMM |
| Wireless Security |
WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions |
| Wireless Schedule |
Supports 2.4 GHz and 5 GHz Wireless Schedule |
| VOIP FEATURES |
|
| VoIP Standards |
SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726 |
| Integrated Answering Machine |
Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices |
| Advanced Telephone Functions |
Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number |
| SOFTWARE FEATURES |
|
| Advanced Features |
IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| Security |
NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Operating Modes |
VDSL/ADSL Modem Router, 3/4G Router, Wireless Router |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP, TP-Link |
| VPN |
OpenVPN, PPTP VPN, IPSec VPN |
| Protocols |
Support IPv4 and IPv6 |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| USB Sharing |
Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage |
| Guest Network |
2.4 GHz guest network, 5 GHz guest network |
| IPSec VPN |
Support up to 10 IPSec VPN tunnels |
| OTHERS |
|
| Certification |
CE, RoHS |
| Package Contents |

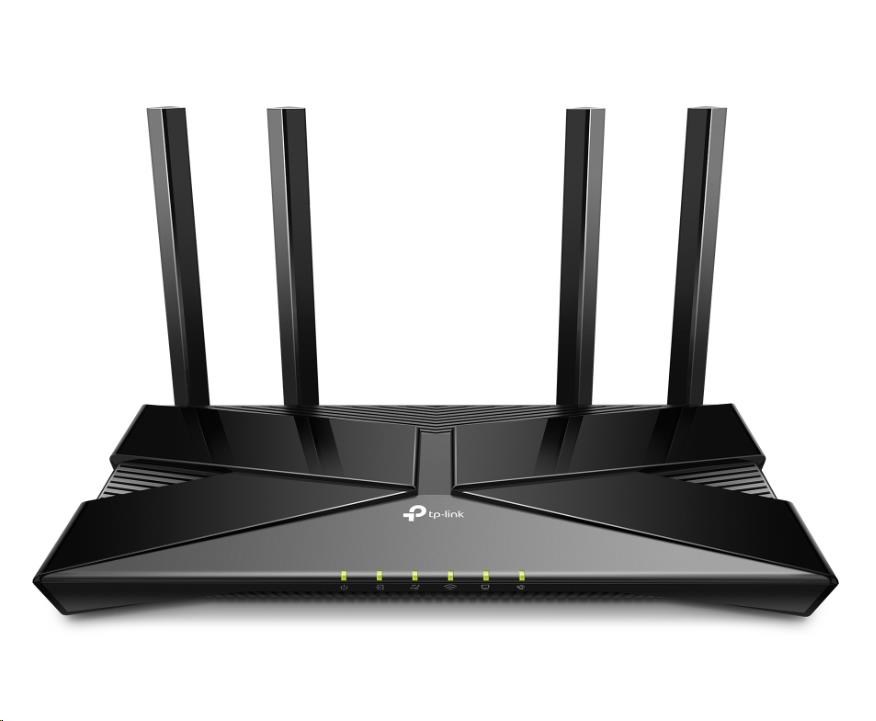

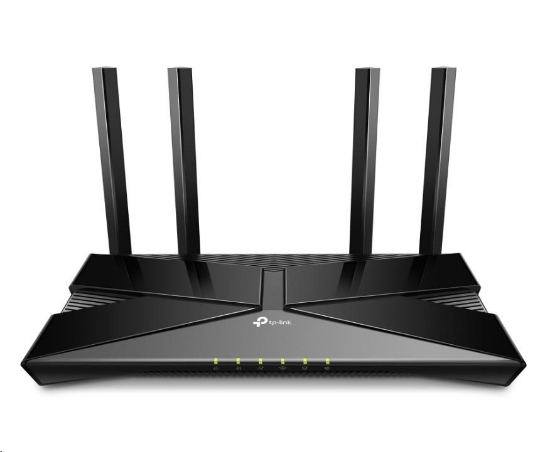

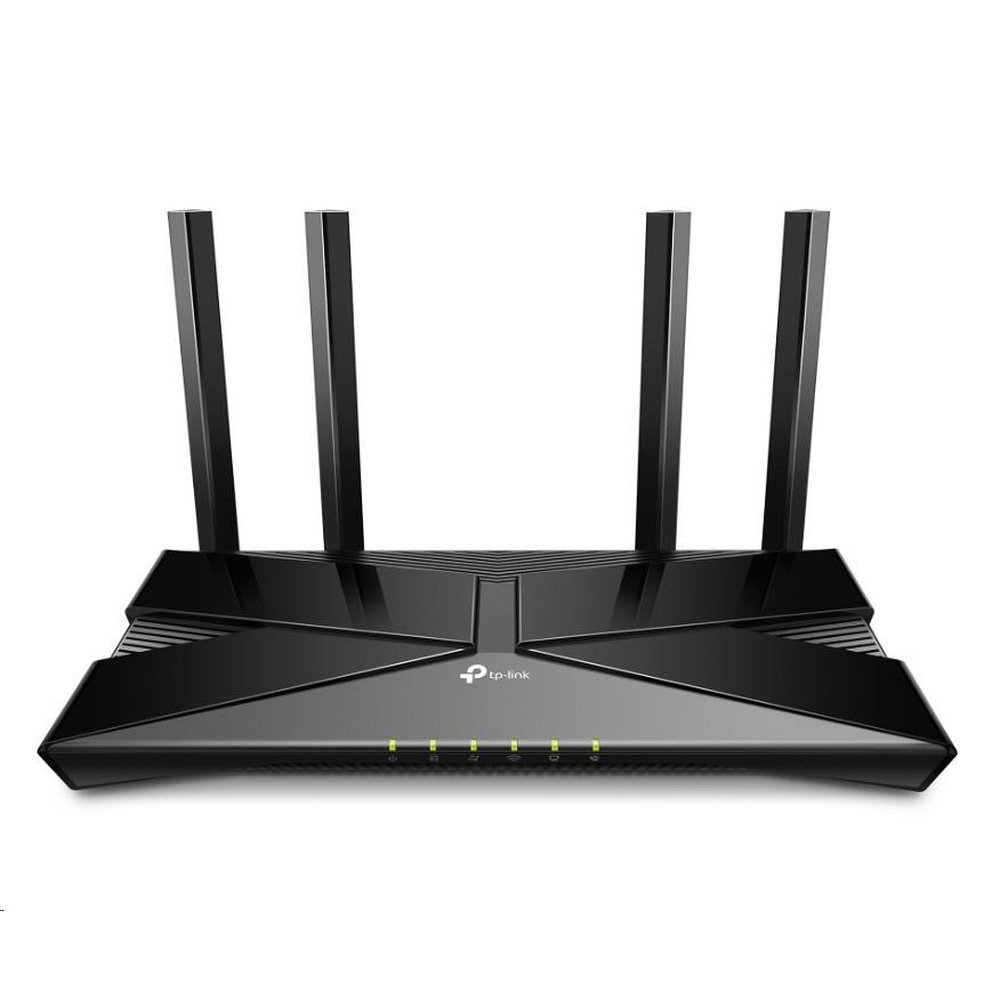

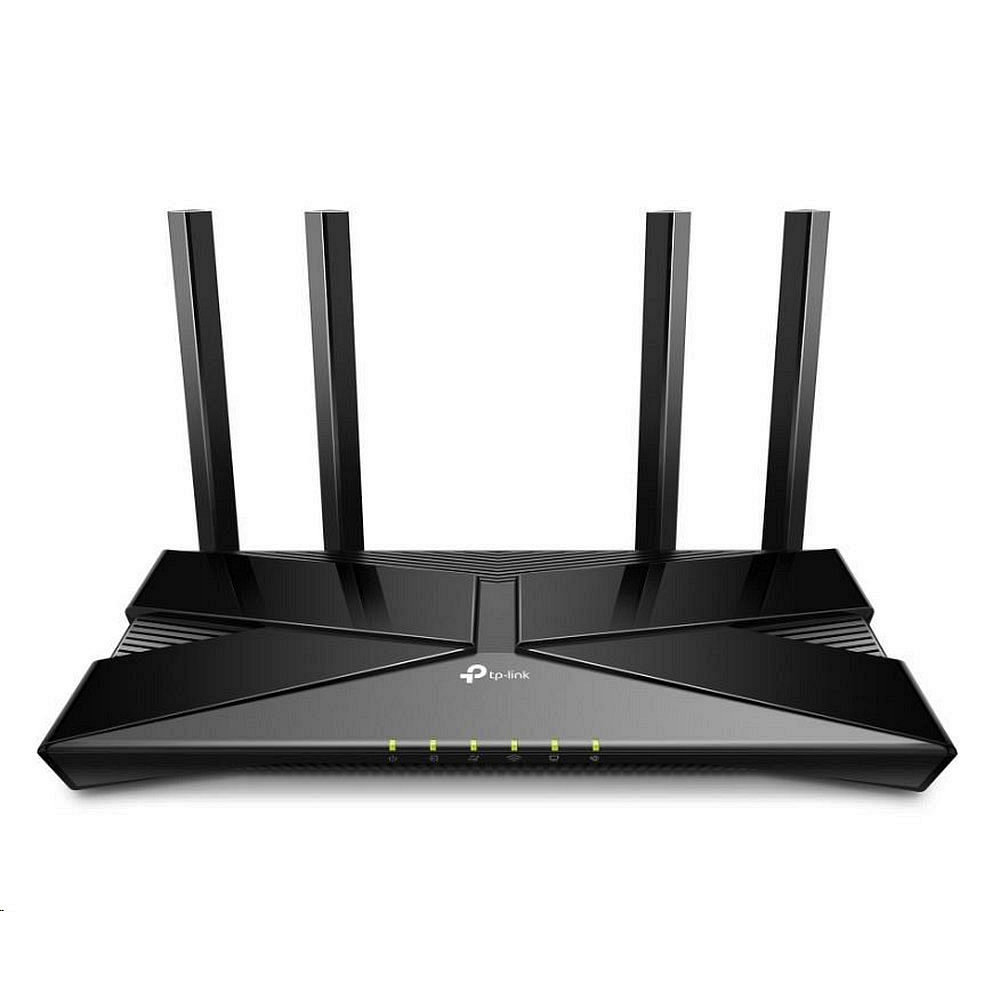

Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~60°C (-40°F ~140°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
