| WIRELESS |
| WiFi Speeds | BE9300
• 6 GHz: 5760 Mbps (802.11be)
• 5 GHz: 2880 Mbps (802.11be)
• 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses
6× Optimally Positioned Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High
Tri-Band
Allocate devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth |
| Working Modes | • Router Mode
• Access Point Mode |
| Advanced Functions | • Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network |
| SECURITY |
| Network Security | • SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network | • 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server |
| VPN Client | • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client |
| WiFi Encryption | • WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x) |
| HARDWARE |
| Processor | High-Performance CPU |
| Ethernet Ports | • 1× 2.5 Gbps WAN
• 4× 2.5 Gbps LAN |
| USB Support | 1× USB 3.0
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server |
| Buttons | • Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button |
| Power | 12 V ? 3.3 A |
| SOFTWARE |
| Protocols | • IPv4
• IPv6 |
| Service Kit | HomeShield
Learn More> |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Type | • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade
• TP-Link ID
• DDNS |
| NAT Forwarding | • Port Forwarding
• Port Triggering
• DMZ
• UPnP |
| IPTV | • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN |
| DHCP | • Address Reservation
• DHCP Client List
• Server |
| DDNS | • TP-Link
• NO-IP
• DynDNS |
| Management | • Tether App
• Webpage |
| OTHER |
| Network Services Enabled by Default | Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0?~40? (32? ~104?)
• Operating Humidity: 10%~90% non-condensing |
| PHYSICAL |
| Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) |

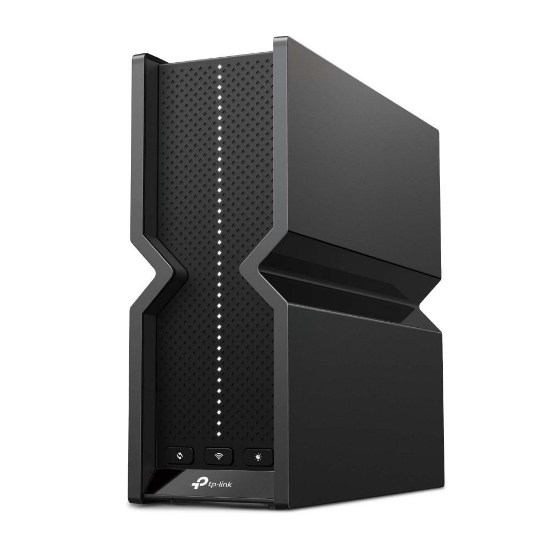

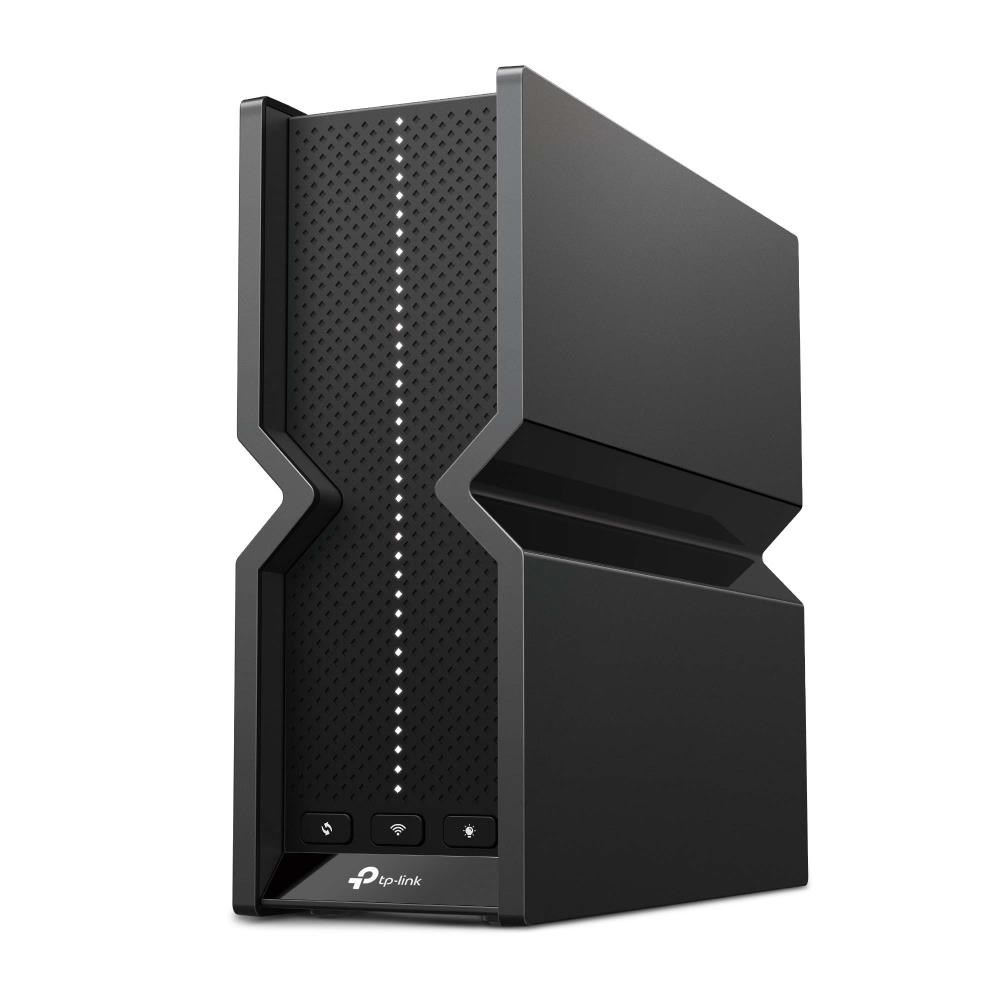

| Package Content | • Wi-Fi 7 Router Archer BE550
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide |
