| WIRELESS |
|
| Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
Access Point Mode |
| HARDWARE |
|
| Processor |
Dual-Core CPU |
| Ethernet Ports |
1× Gigabit WAN Port
4× Gigabit LAN Ports |
| Buttons |
WPS/Wi-Fi Button
Power On/Off Button
Reset Button |
| Power |
12 V = 1 A |
| SECURITY |
|
| WiFi Encryption |
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN
PPTP |
| SOFTWARE |
|
| Protocols |
IPv4
IPv6 |
| OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls |
URL Filtering
Time Controls |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management |
Tether App
Webpage
Check Web Emulator> |
| PHYSICAL |
|
| Dimensions (W×D×H) |
10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm) |
| Package Contents |

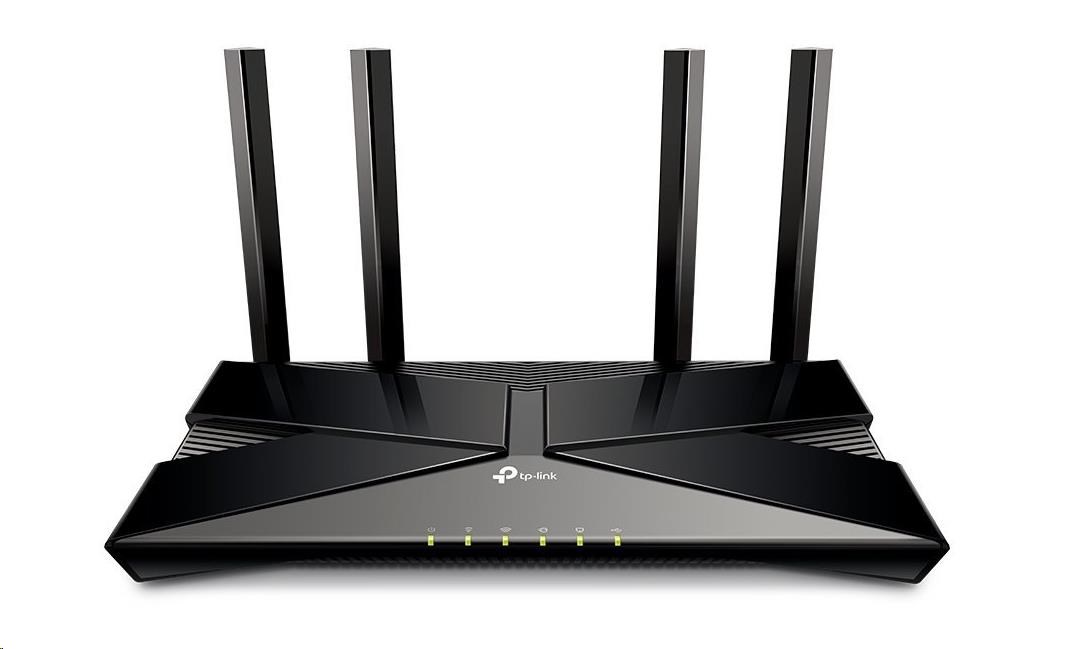

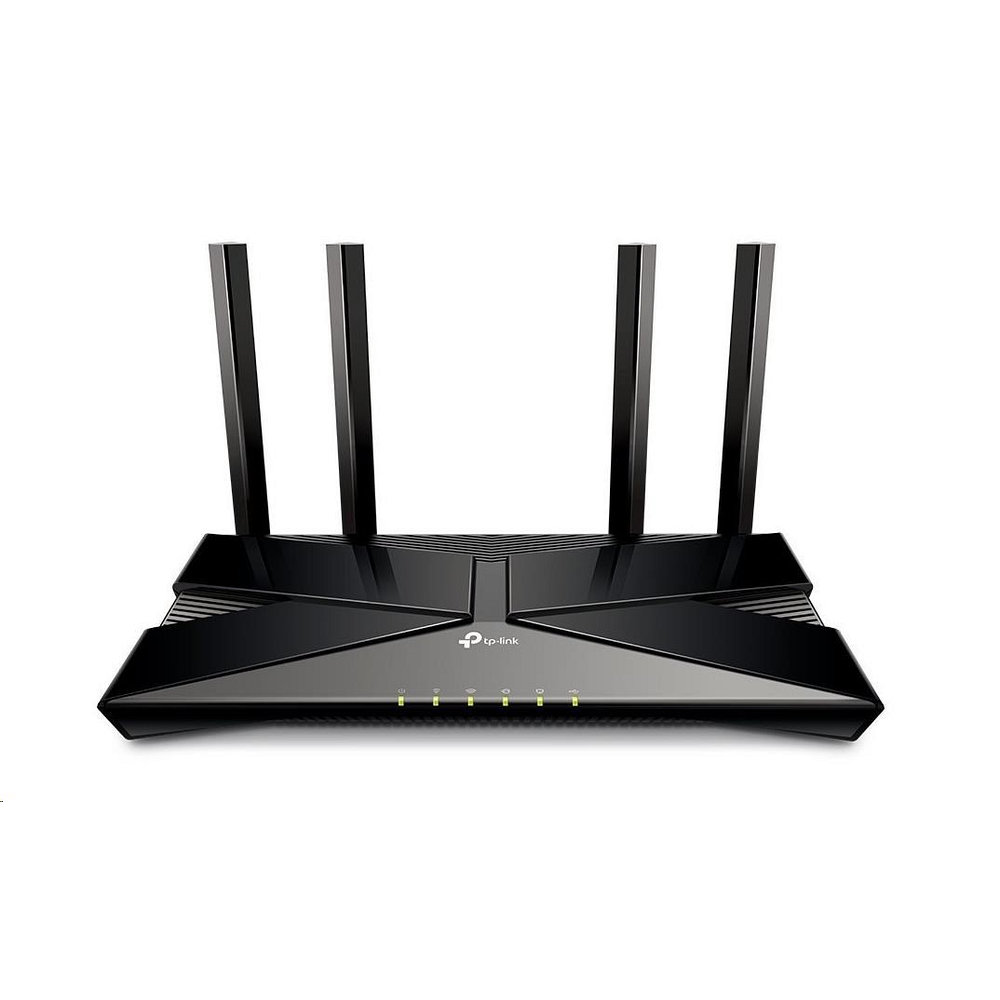

Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| OTHER |
|
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
|
| WiFi Transmission Power |
CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity |
EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
US Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
2.4G
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm |
