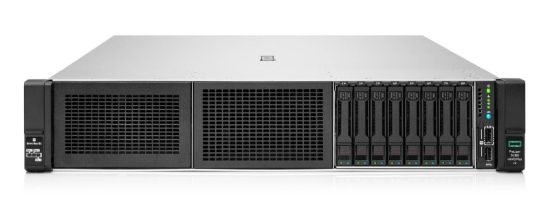

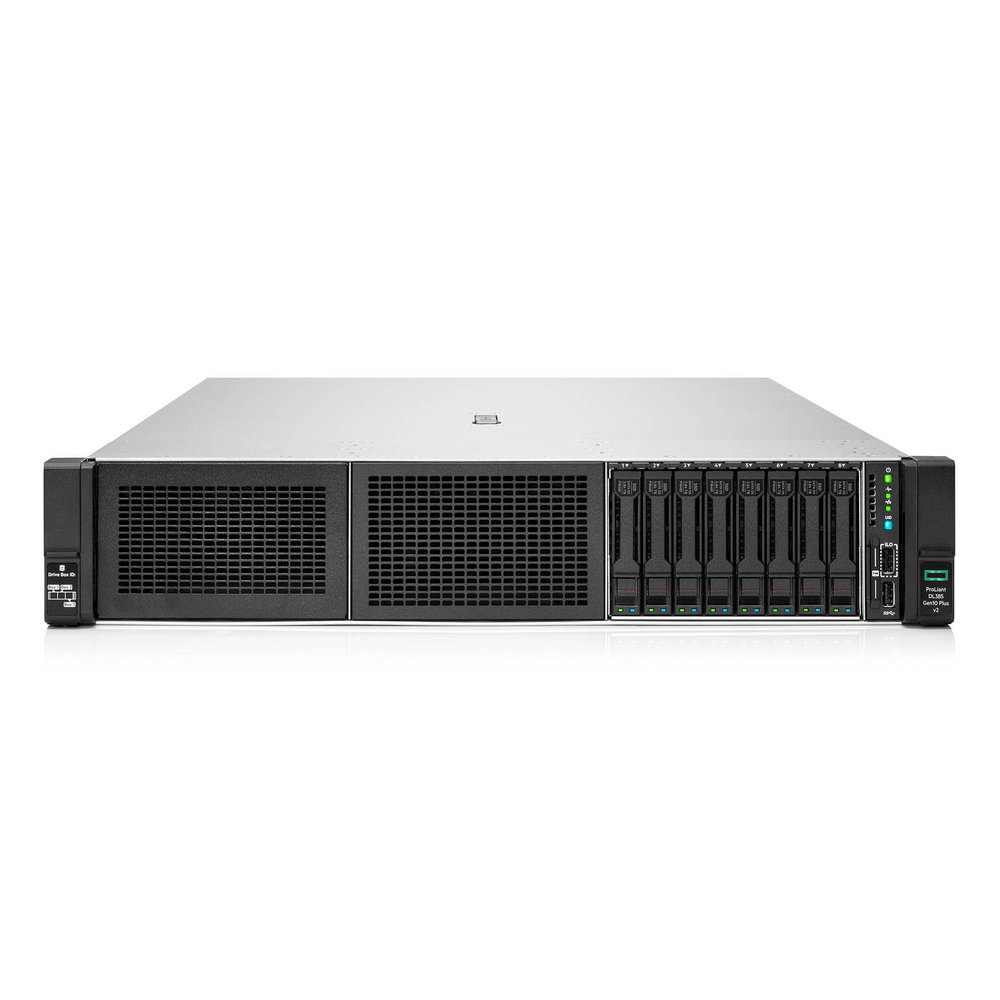

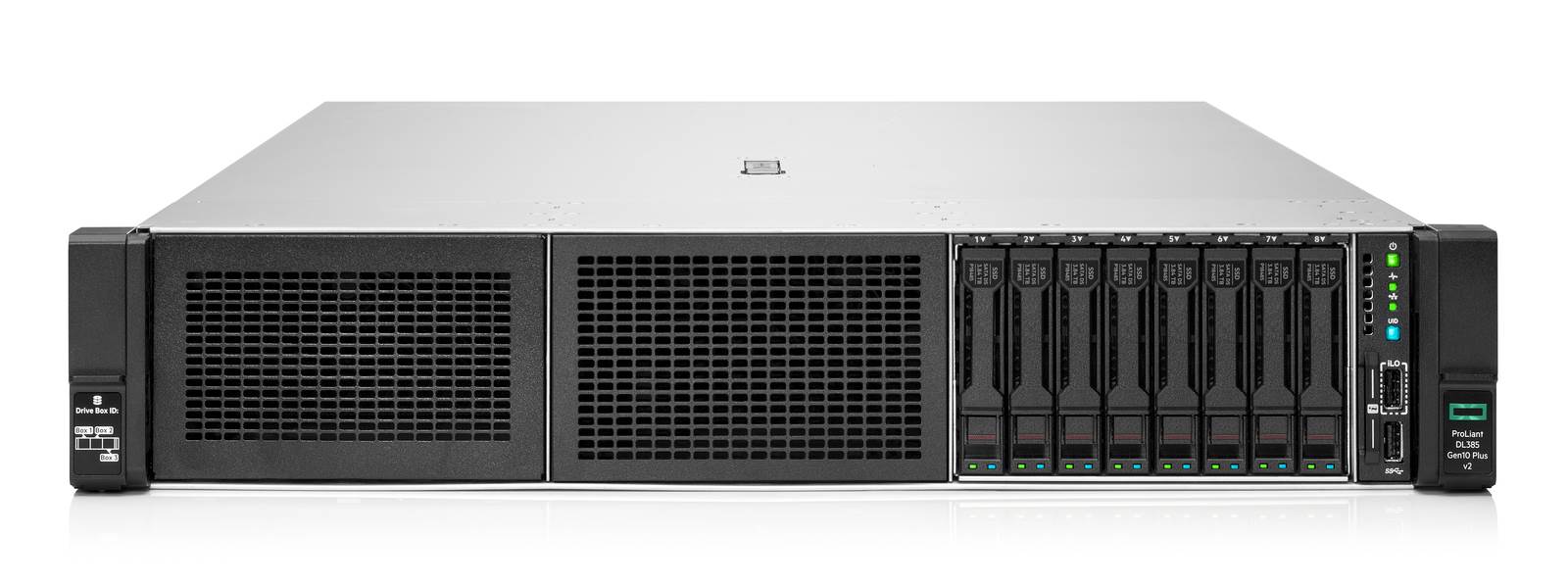

HPE PL DL385g10 Plus v2 Epyc 7313 (3.0G/ 16C) 1 x 32G MR416i- a 8SFF ocp 2 x 10GT 1 x 800 W L9 P55284- 421 RENEW

SKU Number

P55284-421

Model Name

HPE ProLiant DL385 Gen10 Plus v2 7313 3.0GHz 16-core 1P 32GB-R MR416i-a 8SFF 800W PS EU Server

Processor

7313 (16-Core, 3.0 GHz, 155W)

Number of Processors

One processor

Memory

32 GB RDIMM DR 3200 MT/s (1x 32 GB)

Network Controller

BCM 57416 10GbE 2p BASE-T OCP3 Adptr plus choice of standup card

Storage Controller

MR416i-a

Notes: Supports Tri-mode.

Hard Drive

None ship as standard

Internal Storage

8 SFF Chassis (upgradeable to 24 SFF front + 8 SFF mid + 4SFF rear)

Optical Drive Bay

Optional

Optical Drive

None ship as standard

PCI-Express Slots

3-slots (x8, x16, x8) as standard

Power Supply

1x 800W HPE FlexSlot Power Supply

Notes: EU Lot-9 compliant.

Fans

4-standard fans

Management

Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)

Energy Star

3.0 certified

Form Factor

2U Rack, SFF Easy Install rails without CMA

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Platform Information

Form Factor

• 2U rack

Chassis Types

• 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options
• 24 SFF bay with 8 SFF mid tray drives and 4 SFF rear drive bay option to total 36 SFF drives
• 8 LFF with Universal Media Bay, and optional SFF or NVMe drive bay options
• 12 LFF with optional 4 LFF mid tray and optional 4 LFF to total 20 LFF drives

Notes:

- DL385 Gen10 Plus v2 uses Basic Carrier drive cages, not Smart Carrier drive cages as used on DL385 Gen10 Plus.

- The 4 LFF rear drive box will consume space for the primary and secondary riser.

- The 8 and 12 LFF chassis also supports the 2 SFF rear drive box which allows for the user to attach a secondary or tertiary riser.

- The 24 SFF chassis already supports 3x 8 SFF SAS/SATA drive cage kits

- The 8 NVMe U.3 or U.2 cage kits (P27194-B21, P26931-B21, P26932-B21) can only be leveraged in the SFF chassis and replaces Box 1, 2 or 3.

- The Universal Media Bay (P14609-B21) not available with the LFF chassis or the 24 SFF front, and can only be populated in Box 1.

- The 8 NVMe SFF can be upgraded with additional two front 8 NVMe SFF U.3 or U.2 drive boxes (P27194-B21, P26931-B21, P26932-B21) to total 24 SFF NVMe drives, and up to 32 SFF NVMe drives with one mid 8 NVMe SFF mid-tray drive cage (P39600-B21, P38847-B21). U.3 and U.2 front and mid drive cages cannot mix.

- U.3 x1 and x4 drive cages cannot mix.

- The 8 LFF chassis cannot be upgraded to 12 LFF front in the field.

- 12 LFF or more drives require Max performance fan kit (P14608-B21).

- CPU selection is limited 225W (Turbo to 240W) or lower with 4LFF mid-tray selected & DIMM blanks populate empty DIMM slots.

System Fans

Standard - fan types included

• The 8 SFF chassis ship with 4 standard fans as standard.
• The 8 LFF chassis ships with 6 standard fans as standard.
• The 12 LFF and 24 SFF chassis ship with 6 max performance fans as standard.
• Max performance fan kit is available to meet ambient temperature environments.
• Max performance fan kits are required for rear drives, or >155w Processors SKUs, or if High Performance NVMe/SAS4 drives being used.

Processors Up to 2 of the following depending on model.

Notes: For more information regarding AMD EPYC processors, please see the following: https://www.amd.com/en/products/epyc

Notes: All AMD EPYC processors can support up to 4TB of memory each

Chipset

No chipset - System on Chip (SoC) design.

On System Management Chipset

HPE iLO 5 ASIC

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Notes:

- The maximum memory speed is limited by the processor selection.

- 3200 MT/s memory SKUs can run the transfer rate of 3200 MT/s at both 1 DIMM and 2 DIMM per channel, except 256 GB LRDIMM

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Expansion Slots

Primary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are 3 types of risers supported on Primary Slot

- When supporting Slot1 & Slot2 in below Primary Riser3 scenario, Slot1 & Slot2 combined can support up to 38GB/s bandwidth, due to an AMD CPU limitation.

Notes: ** Default Slot1 on the Primary Riser3 is empty and not available. It requires P14600-B21 in conjunction with the Primary Riser3 to add additional x16 PCIe Gen4 in slot1.

Secondary Riser:

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 3 types of risers support on Secondary Slot

Notes: * Default Slot4 on the Secondary Riser3 is empty and not available.It requires P14600-B21 in conjunction with the Secondary Riser3 to add additional x16 PCIe Gen4 in slot4

Tertiary Riser:

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers support on Tertiary Slot

Storage Controllers

The Gen10/Gen10 Plus controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10/Gen10 Plus Smart Array controllers visit the

HPE Smart Array Gen10 Controllers Data Sheet.

HPE also launched Tri-Mode controllers which will support NVMe U.3/U.2 drives as wells as SAS/SATA drives. Please see below list for the tri-mode controllers supported on the server.

One of the following depending on model

NVMe Boot Device

• HPE NS204i-p NVMe PCIe3 OS Boot Device

Notes:

- NS204i-p will only be supported in Slot 1 of the primary riser.

- NS204i-p and Primary Riser HPE DL38X Gen10+ 2x16 Slot 2/3 FIO Kit (P14599-B21) are selected then HPE DL38X Gen10+ Slot1 x16 Slot2/3 Kit (P14600-B21) also must be in the configuration.

- Legacy Mode setting (758959-B21) and NS204i-p cannot be selected together.

- HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21) and NS204i-p cannot be selected together.

- When NS204i-p and doublewide GPU are selected together Secondary Riser MUST be selected and doublewide GPU can be maximum of 2.

Software RAID - HPE Smart Storage SR100i SR Gen10 Plus SW RAID

• All models feature an embedded storage controller, capable of operating on AHCI or SR100i modes, with embedded software supporting RAID for up to 2 U.3 NVMe SSDs.
• HPE Smart Storage SR100i SR Gen10 Plus SW RAID will operate in UEFI mode only. Legacy Mode (758959-B22) and SR100i Gen10 Plus SW RAID CAN NOT be selected together. For legacy support, an additional controller will be needed.
• SR100i cannot be selected with 878783-B21 Universal SATA HH M.2 Kit or P12965-B21 HPE NS204i-p Gen10+ NVMe Boot Device.
• SR100i can only be selected with 8SFF CTO and 8LFF CTO servers.
• SR100i cannot be selected with P4610, P4510 or P4800x SSD drives.
• SR100i cannot be selected with P26932-B21 HPE DL300 Gen10+ 2U 8SFF x4 NVMe U.2 Kit
• Embedded SATA controller by default will work in AHCI Mode. HPE Smart Storage SR100i SR Gen10 Plus SW RAID can be enabled by selecting HPE SR100i Gen10 Plus Software RAID (P28417-B21).
• Supports Microsoft Windows Server only.

Essential RAID Controller

• HPE Smart Array E208i-a SR Gen10 Controller
• HPE Smart Array E208i-p SR Gen10 Controller
• HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

• HPE Smart Array P408i-a SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P408e-p SR Gen10 Controller
• HPE Smart Array P816i-a SR Gen10 Controller

Notes: Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.

Tri-Mode RAID Controller

• HPE Tri-Mode MR216i-a Gen10 Plus Controller
• HPE Tri-Mode MR216i-p Gen10 Plus Controller
• HPE Tri-Mode MR416i-a Gen10 Plus Controller
• HPE Tri-Mode MR416i-p Gen10 Plus Controller
• HPE Tri-Mode SR416i-a Gen10 Plus Controller
• HPE Tri-Mode SR932i-p Gen10 Plus Controller

Internal Storage Devices

One of the following depending on model

Optical Drive

• Ships standard in Performance Models
• Optional: DVD-ROM, DVD-RW

Hard Drives

• None ship standard

Graphics

Integrated Video Standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory

HPE iLO 5 on system management memory

• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection
