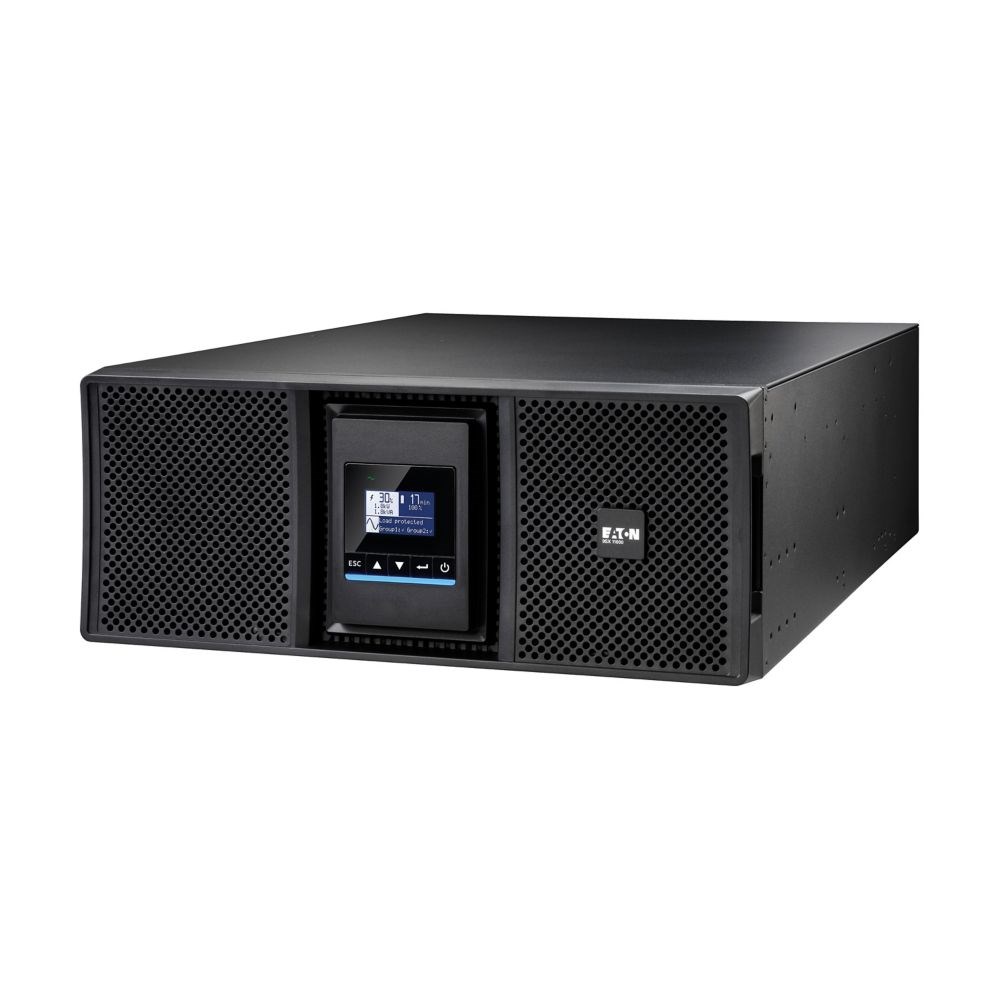

Obrázek Eaton 9SX 11000i G2

Eaton 9SX 11000i G2

Použití:Server, Data Center; Provedení:Tower/Rack; Zdánlivý výkon VA:10000; Výška v Racku:6U; Topologie:On-Line; Fáze (Vstup/Výstup):1:1; Možnosti:Volitelně Management karta, Prodloužení záložního času, Rozšiřitelný výkon UPS; Typ výstupu:Svorkovnice
Výrobce: Eaton
Dostupnost: Není skladem - je u dodavatele na objednání.
Kód: 149594
Typové označení výrobce : 9SX11KIG2
GTIN (EAN): 3553340710698
dodací lhůta : Na dotaz
124 508,05 Kč bez DPH

General specifications

Product Name
Eaton 9SX Gen2 UPS
Catalog Number
9SX11KIG2
EAN
3553340710698
Product Length/Depth
724 mm
Product Height
174 mm
Product Width
440 mm
Product Weight
78.8 kg
Warranty
2 year
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Batteries Directive
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
ENERGY STAR certified
CE
cULus
UKCA
Cm
Ukr
RCM
KCC
BSMI
Model Code
Eaton 9SX 11000i G2

Technické údaje produktu

Special features
  • Double conversion topology
  • Constantly regulates voltage and frequency
  • Up to 97.2% Energy efficient, Energy Star qualified, reduce energy and cooling costs
  • Provides more real power (watts) to protect more equipment with a unity power factor
  • Internal bypass allows service continuity in case of UPS fault
  • Graphical LCD display
  • Hot swappable batteries
Topology
Online/Double-conversion
Form factor
Rack/tower
Rack size
4U
Construction type
Free standing model
Color
Black
VA rating
11 kVA
Wattage
11 kW
Rack mounting kit
No
Package contents
  • UPS
  • (3) cable glands
  • (2) IEC-IEC output cables (1,2m)
  • USB cable (1,8m)
  • Cable locking systems
  • Supports for tower mounting
  • Safety instructions
  • Quickstart guide
Internal bypass
Yes
Hot swap power
No
Auto shutdown function
Yes
Primary frequency - max
70 Hz
Primary frequency - min
40 Hz
Input connection
Hardwired/fixed connection
Input nominal voltage
230V default (200/208/220/230/240V)
Nominal frequency
50/60 Hz
Input frequency range
40-70 Hz
Input power factor
>.99
Receptacle
(8) C13, (4) C19, Hardwired
Number of Outputs C13
8
Number of Outputs C19
