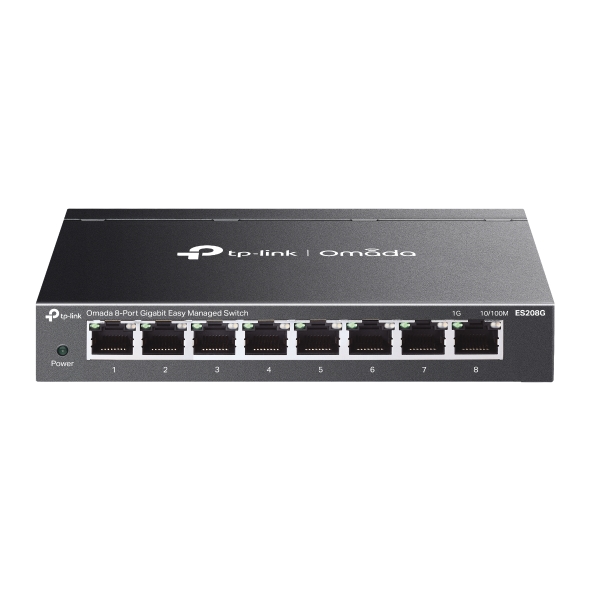

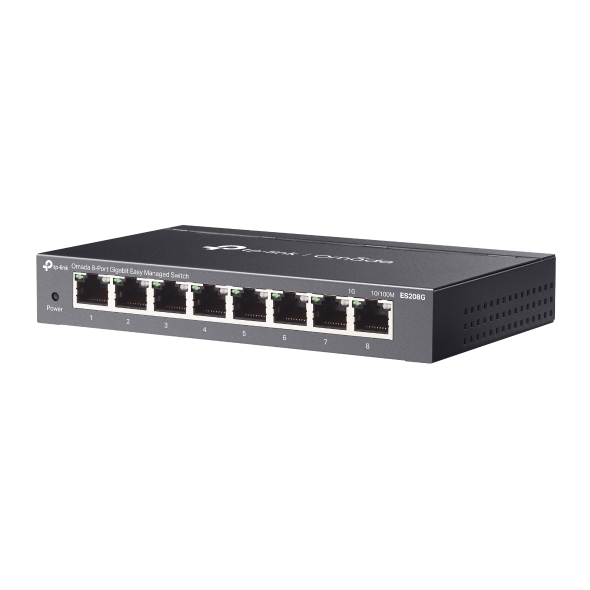

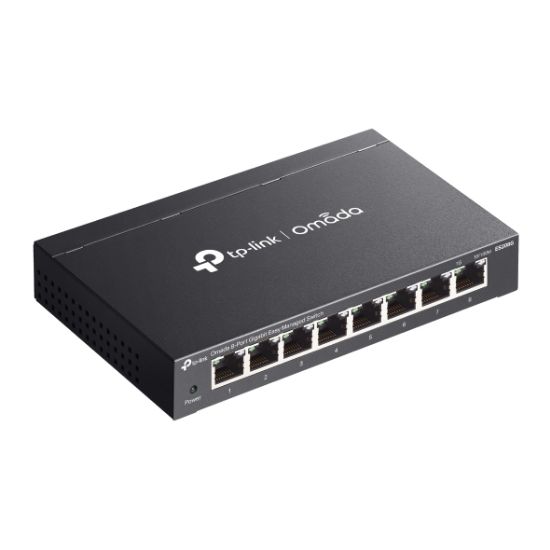

TP-LINK Omada 8-Port Gigabit Easy Managed Switch

• 8× 10/100/1000Mb/s RJ45 portů
• Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
• Centralizovaná cloudová správa prostřednictvím webu nebo aplikace Omada^†
• VLAN, izolace portů, test kabelu^△, QoS^△ pro spolehlivou síťovou infrastrukturu pro dohled
• Automatická prevence smyček a IGMP Snooping
• Bezventilátorový design pro tichý provoz
• Odolné kovové pouzdro a možnost montáže na stůl nebo zeď

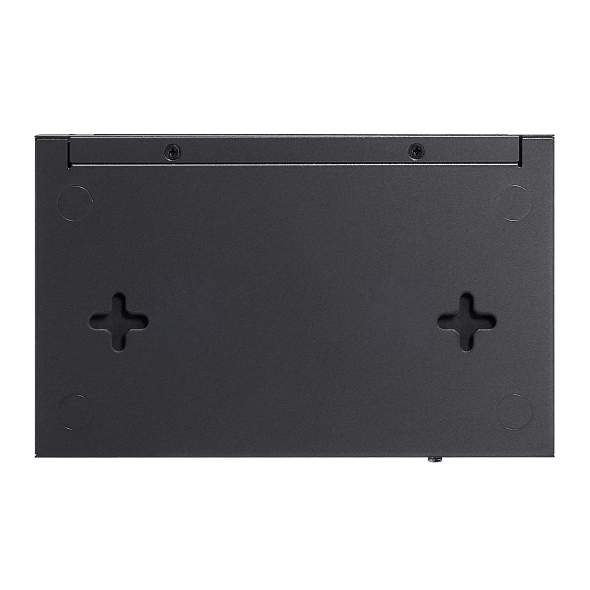

• Wall Mount
Physical Security Lock    √ / Power Supply    DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H )    6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Surge Protection    ±6kV
PERFORMANCE
Switching Capacity    16 Gbps / Packet Forwarding Rate    11.9 Mpps
MAC Address Table    8K / Packet Buffer Memory    4 Mbit
Jumbo Frame    15 KB
SOFTWARE FEATURES
Quality of Service    • Port-based/802.1p/DSCP QoS
• 8 Priority Queues • Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config • Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 Features    • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring / - One-to-One / - Many-to-One / - Ingress/Egress/Both
• Port Statistics
- Port Mirror Status / - Traffic Statistics
• 802.1ab LLDP
L2 Multicast    • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN    • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method    Store-And-Forward
Management Features
Omada App    Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management    • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access    Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning    Yes. Requires the use of Omada Cloud-Based Controller
Management Features    • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification    FCC, CE, RoHS
Package Content    • ES208G
• Power Adapter
• Rubber Feet
• Installation Guide
Environment    • Operating Temperature: -5℃~45℃ (23℉~113℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
