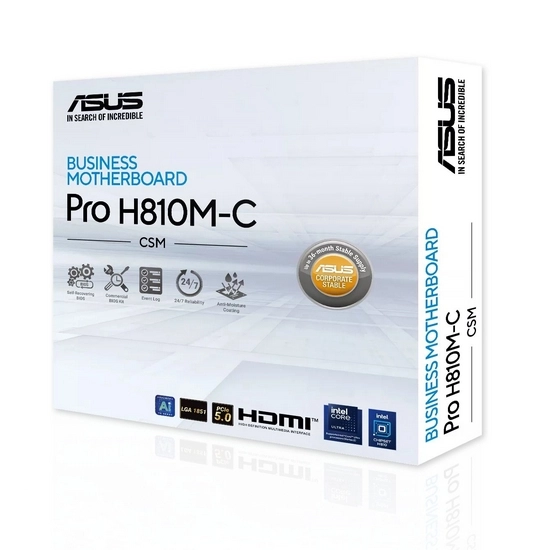

ASUS PRO H810M-C-CSM soc 1851 H810 DDR5 mATX

Firemná základná doska Micro-ATX H810 so zvýšenou bezpečnosťou, spoľahlivosťou, spravovateľnosťou a servisovateľnosťou Pripravené pre počítače s pokročilou AI: Navrhnuté pre budúcnosť výpočtovej techniky AI s výkonom a konektivitou potrebnými pre náročné aplikácie AI Socket Intel® LGA 1851: Pripravený pre procesory Intel® Core™ Ultra (séria 2)
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*

Chipset - Intel® H810 Chipset
Memory 2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)

Graphics
1 x DisplayPort**
1 x VGA port
1 x DVI-D port
1 x HDMI™ port***
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® H810 Chipset
2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 1Gb Ethernet port*
ASUS LANGuard
* With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x DVI-D port
1 x HDMI™ port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 keyboard/mouse combo port
